The first and only B.I.Y.* loudspeaker series that perfectly fit your square storage cabinet.

Square Storage Cabinets

others_1
others_2

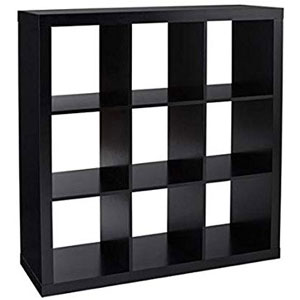

others_3
others_4
others_5

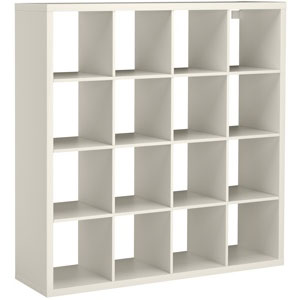

others_6

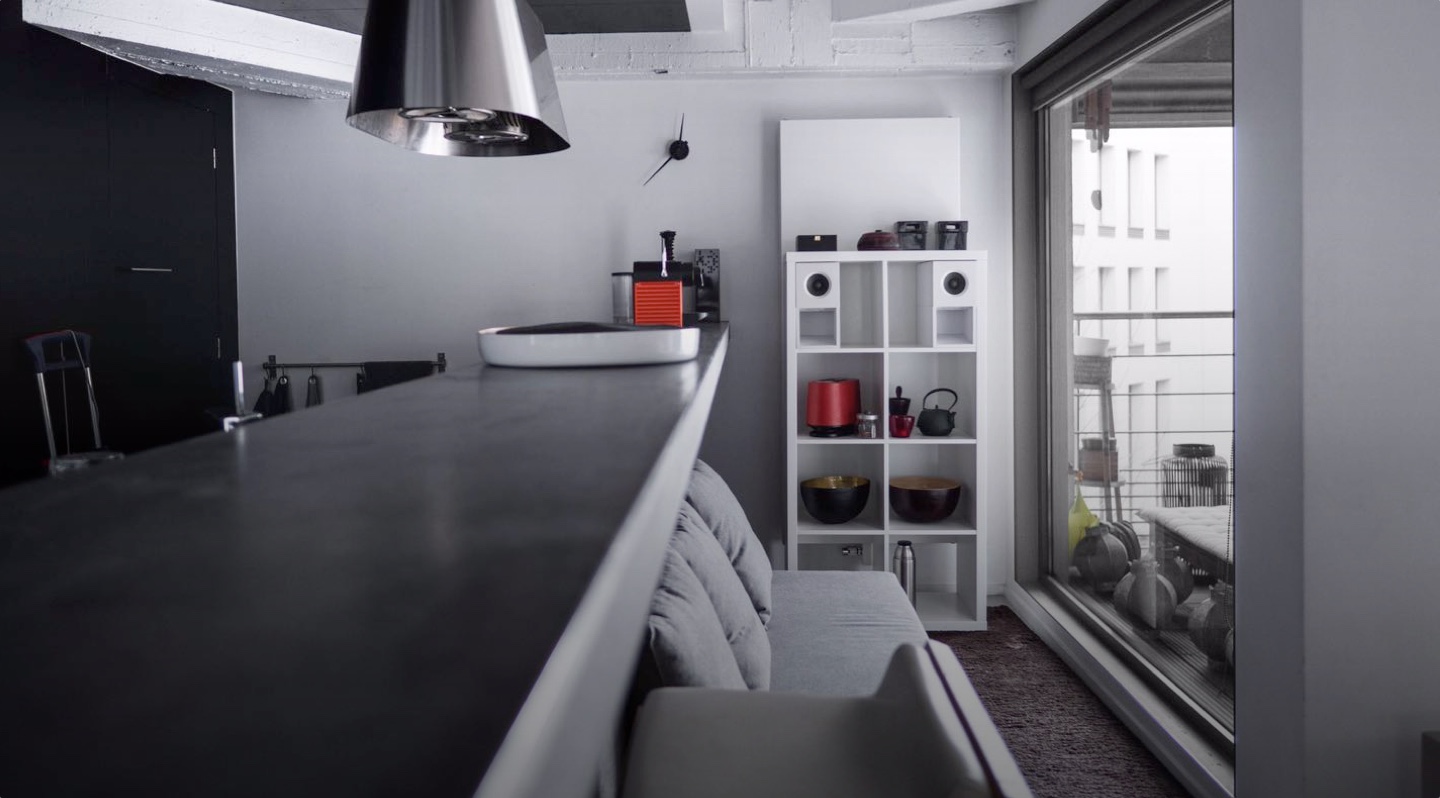

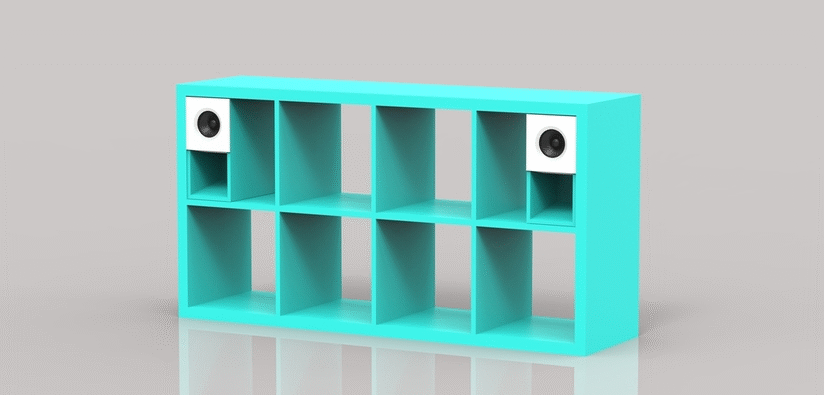

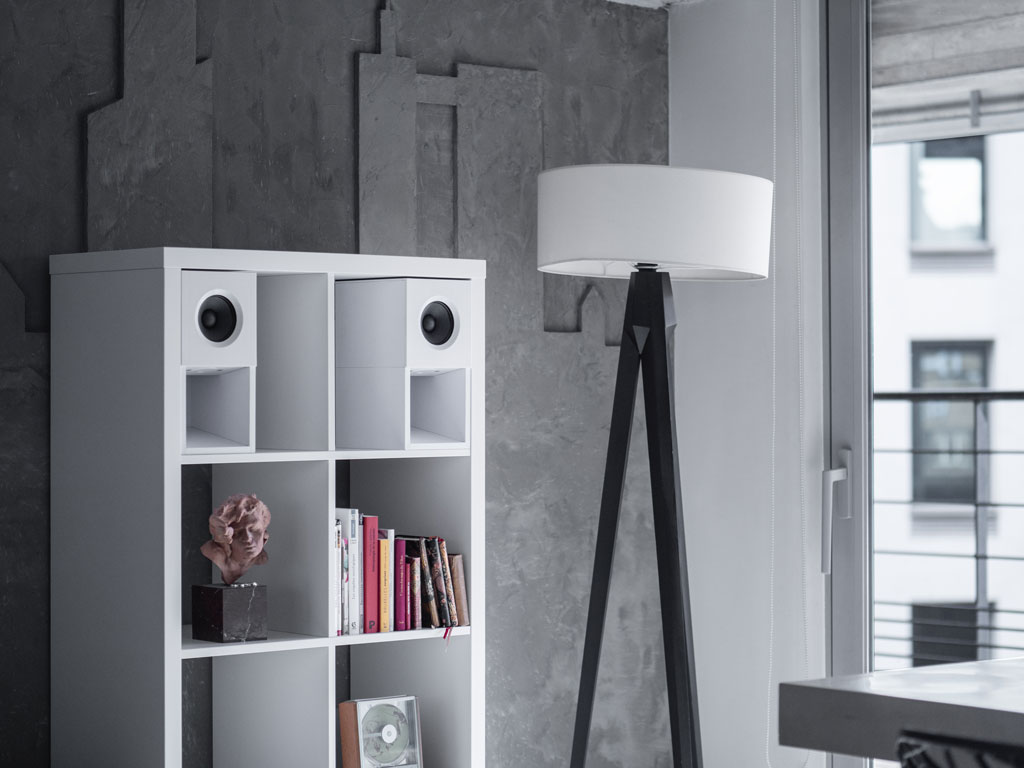

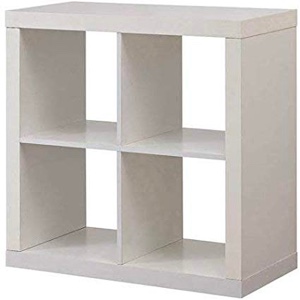

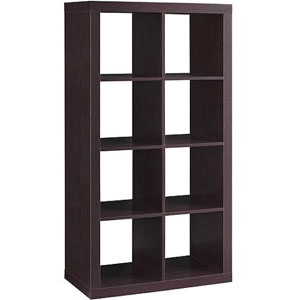

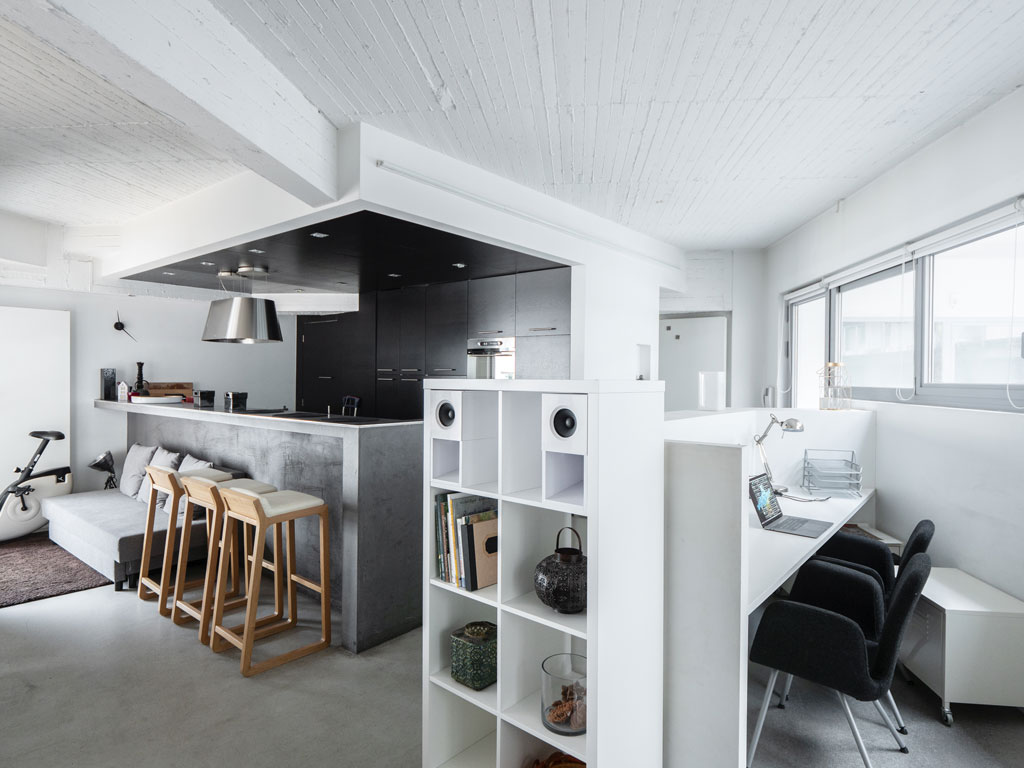

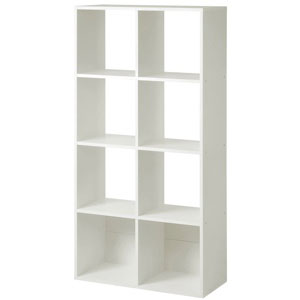

Square storage cabinets are famous and popular for their simplicity, colorful design and multi-purpose usage.

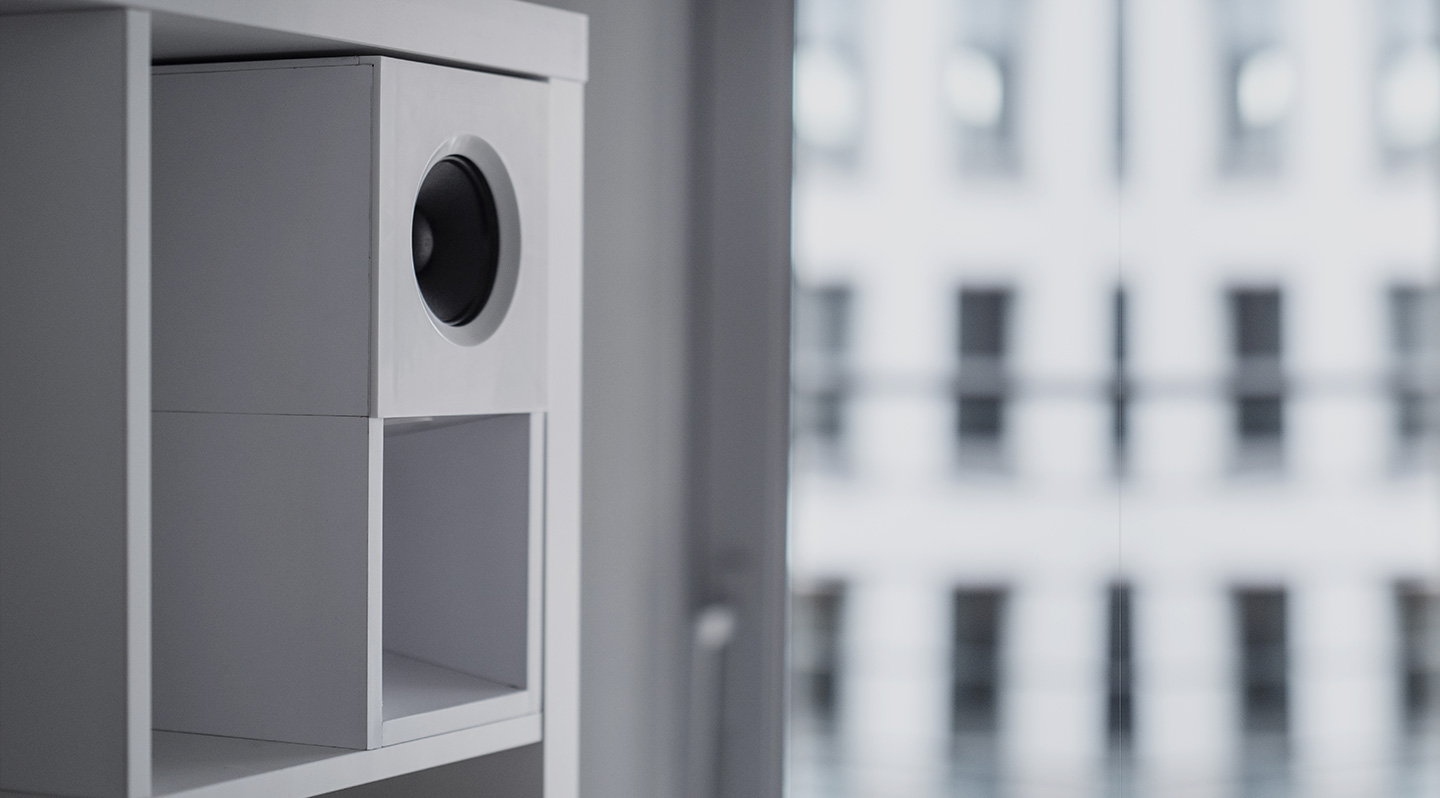

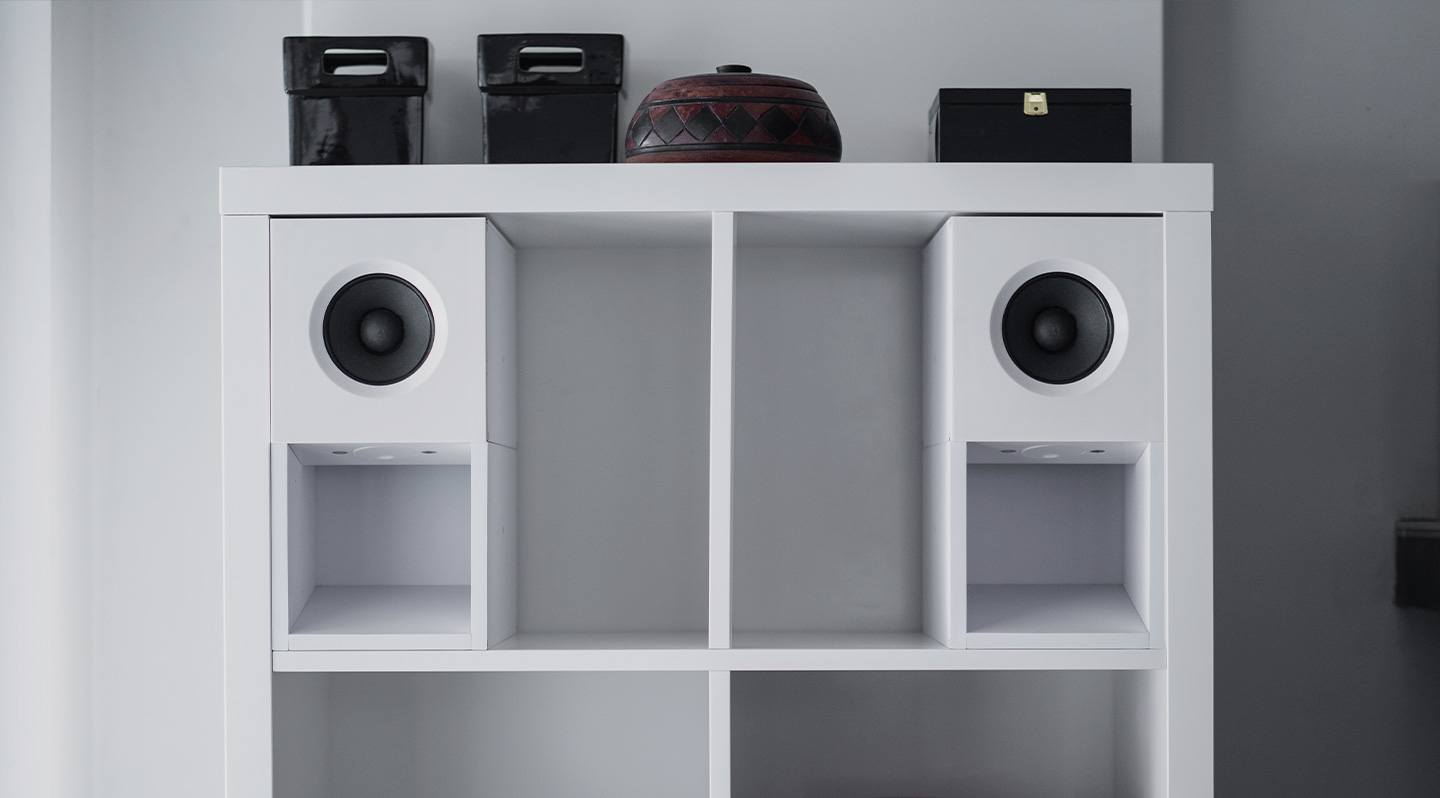

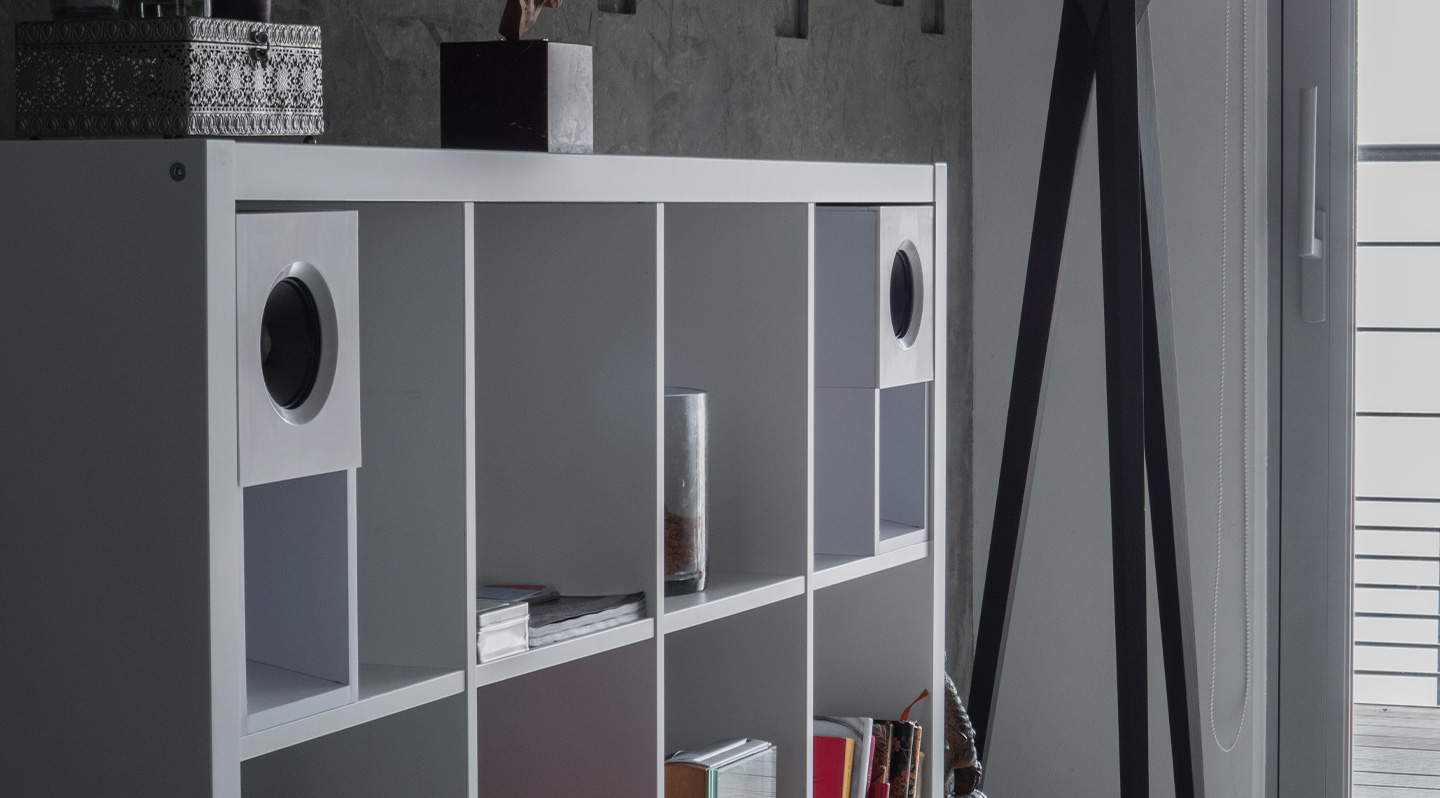

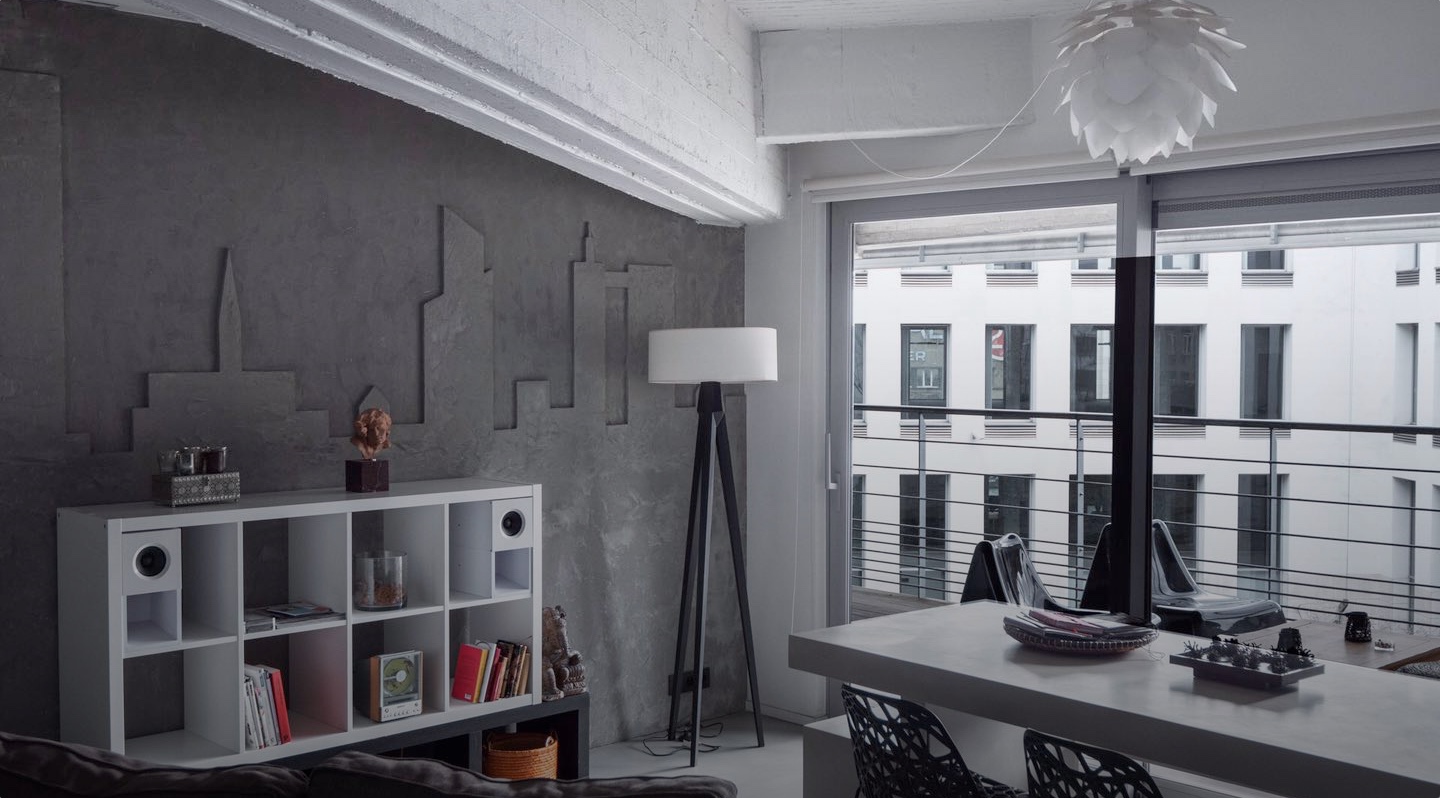

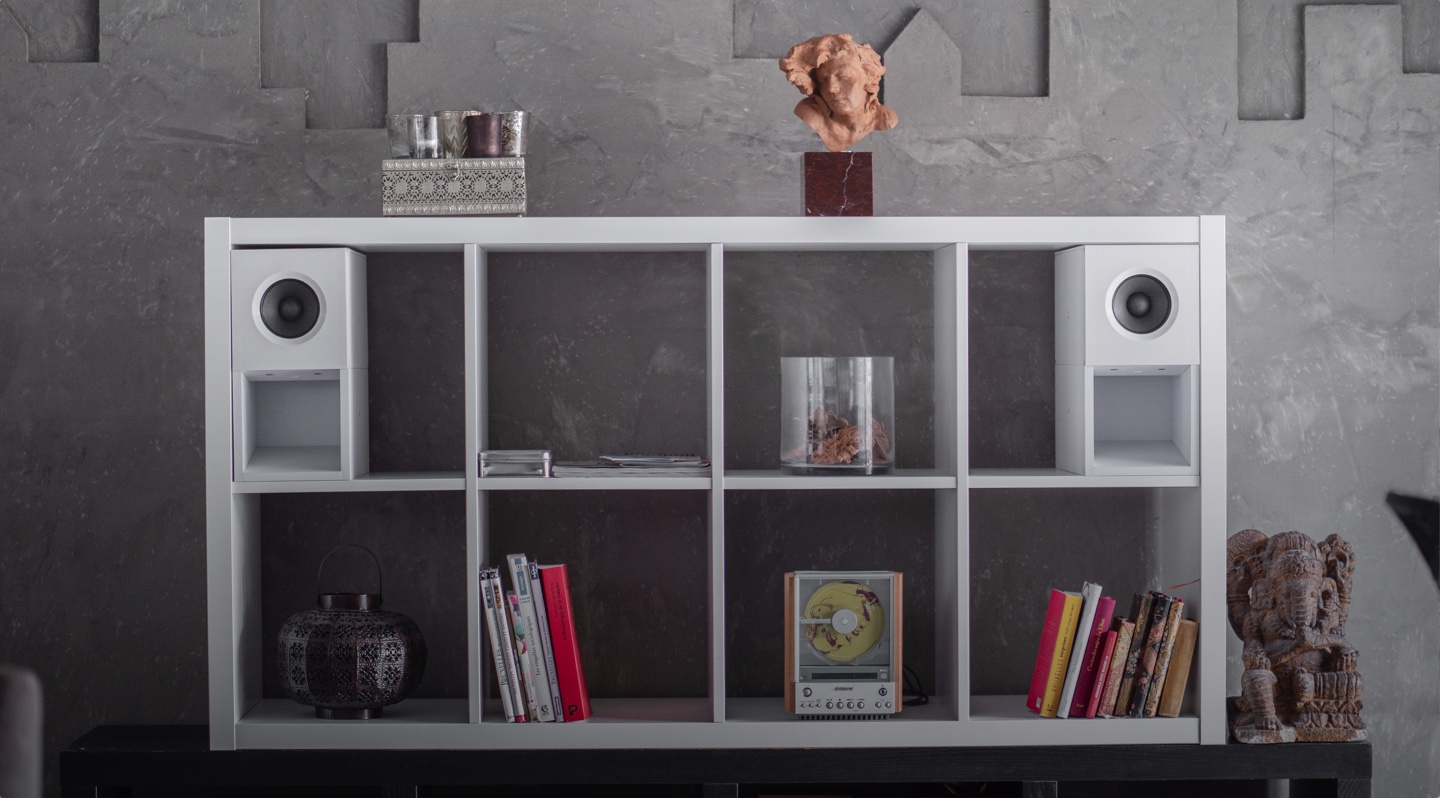

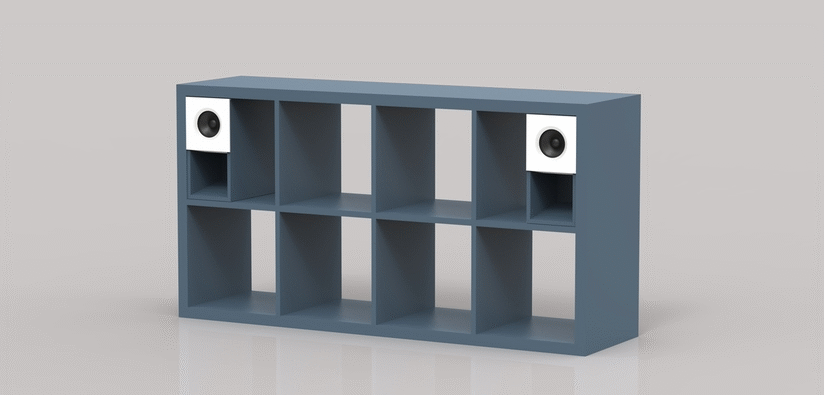

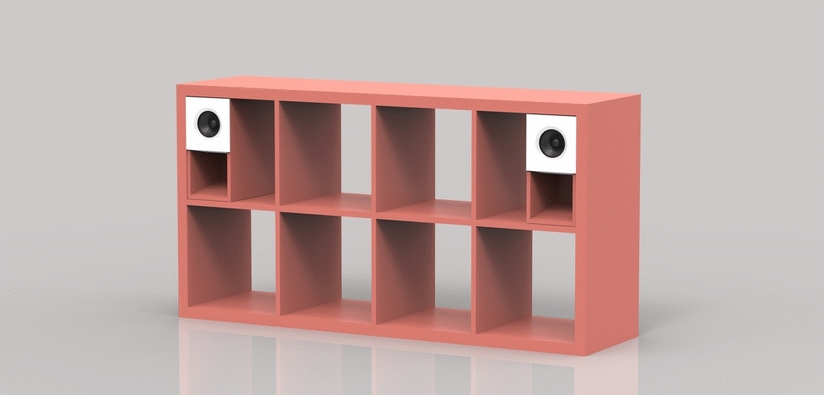

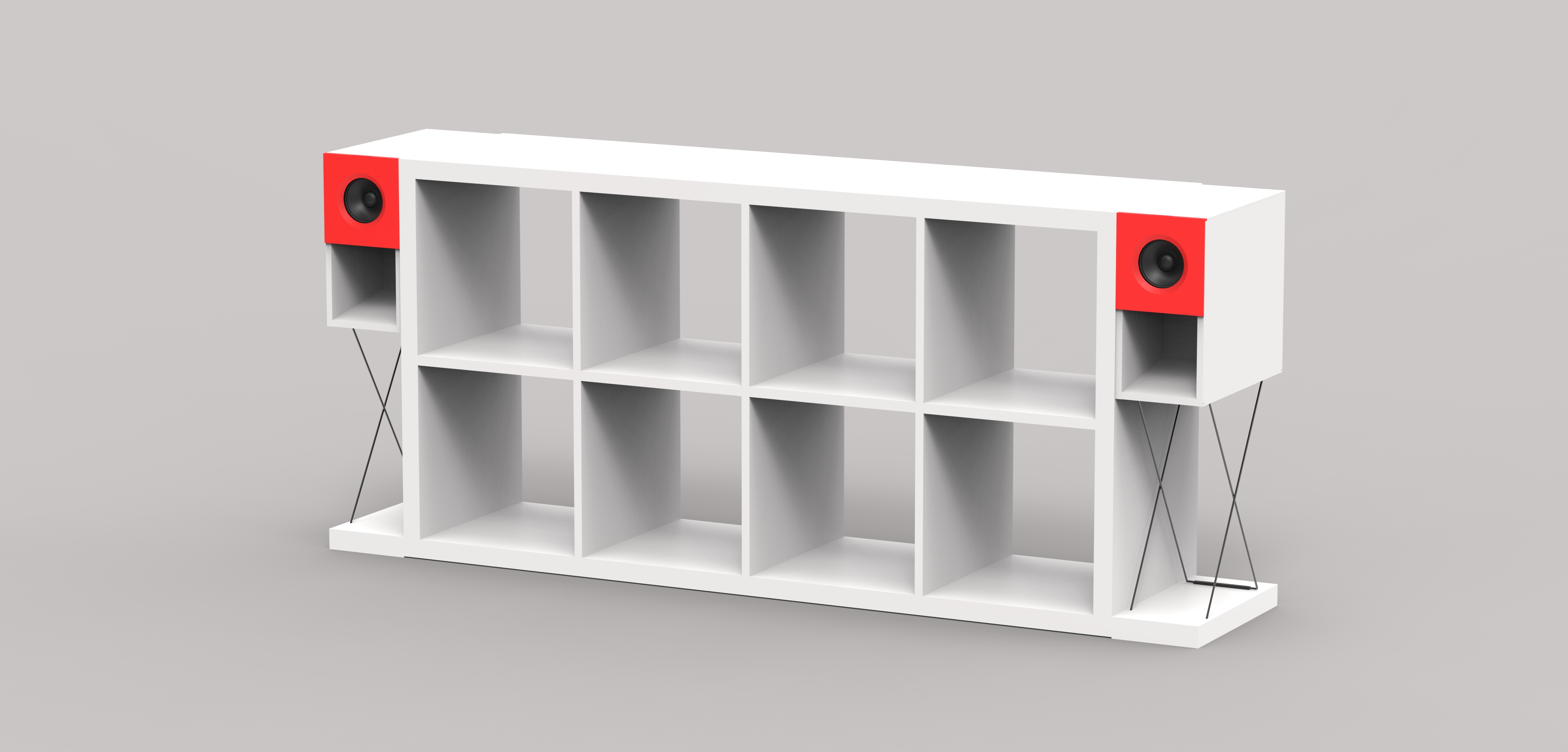

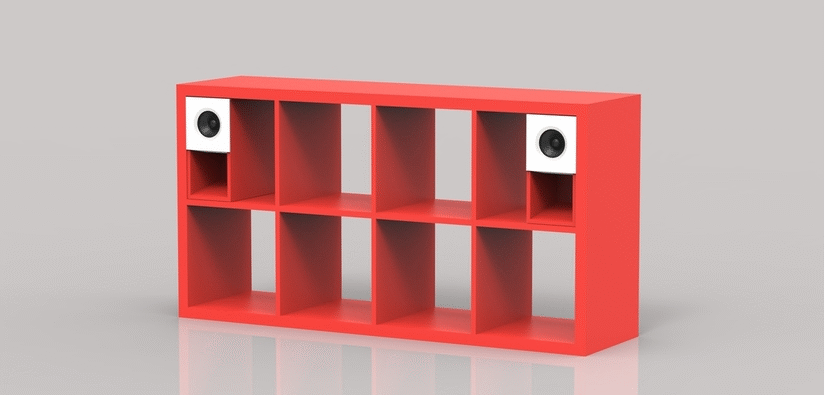

At REAXT we designed our build-it-yourself Omni-speaker series so they perfectly match your favorite square cabinets.

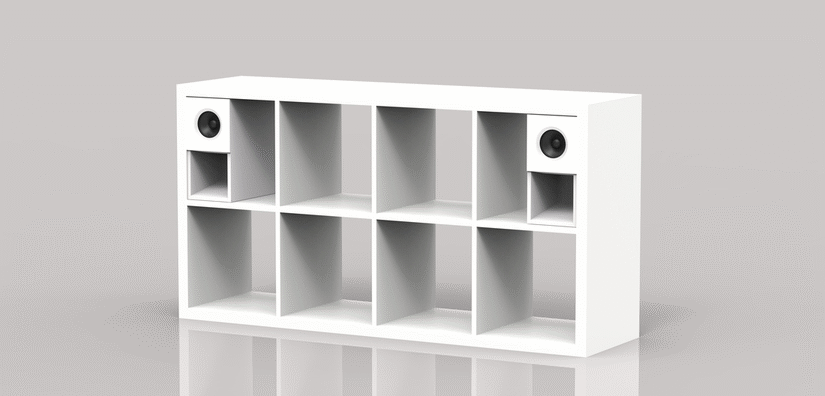

p 1-white_a
p 1-white_a
p 1-black_a
p 1-red_a
p 1-darkblue_a
p 1-cyan_a
p 1-orange_a

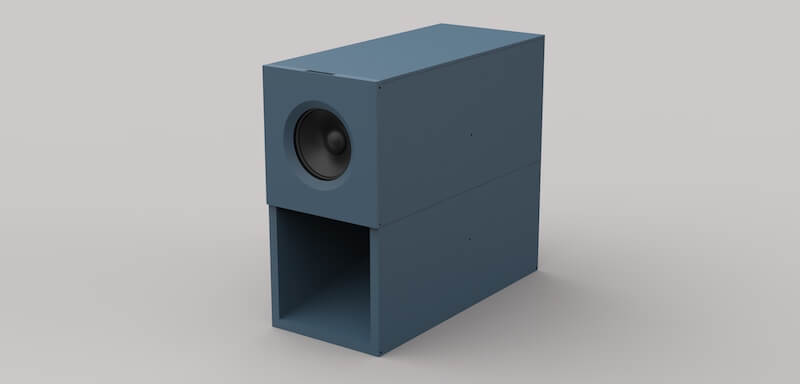

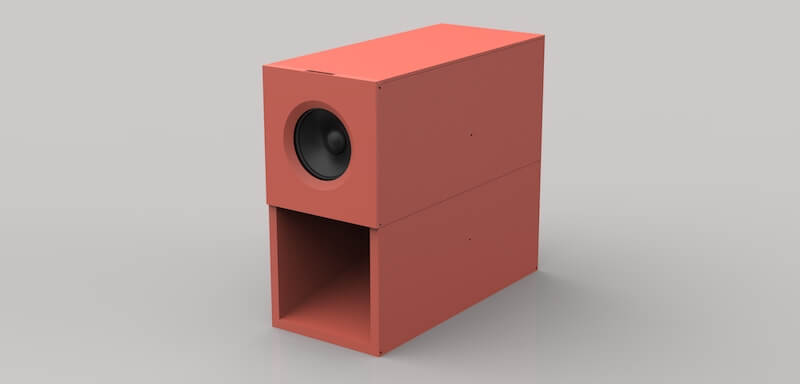

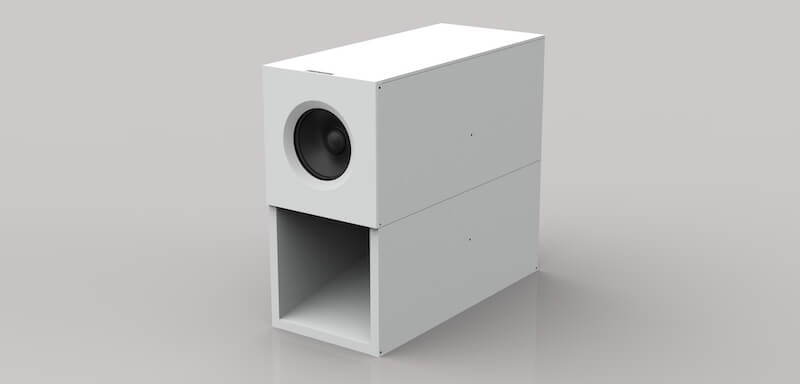

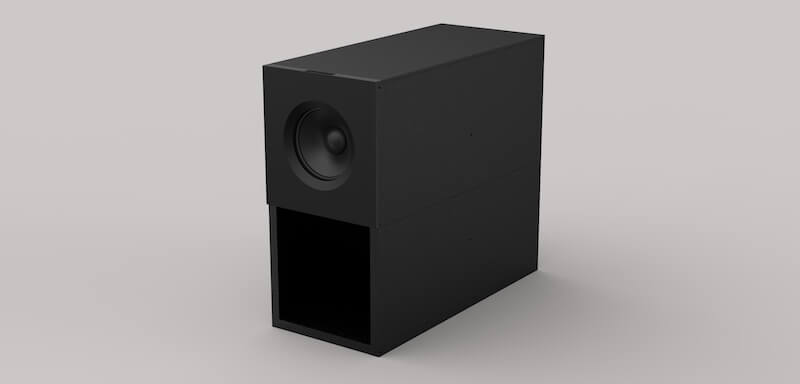

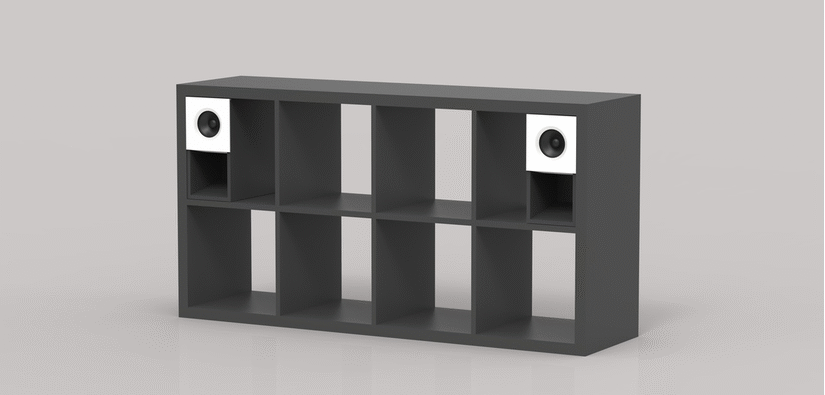

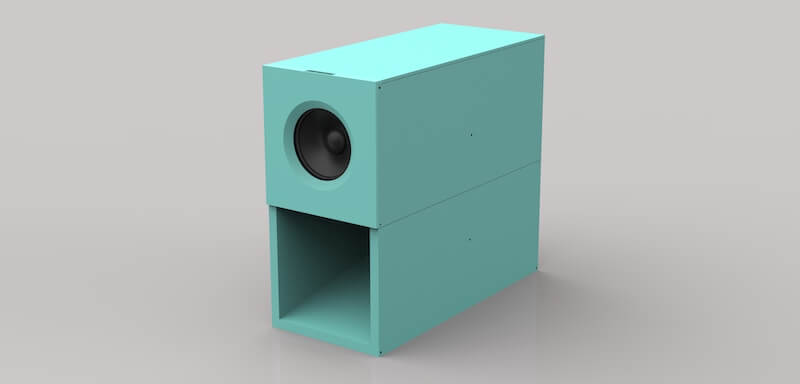

Omni-1.0

Utilizing half the spacing of your square storage cabinet.
With the push of a button, the Bluetooth connection pairs with your sound source of choice.
If however you are old school, you simply plug in your mini-jack.
You can use either just one Omni-1.0 speaker in mono or wirelessly combine two of them as a stereo pair.

p 1-white_a
p 1-white_b
p 1-white_a
p 1-black_a
p 1-red_a
p 1-darkblue_a
p 1-cyan_a
p 1-orange_a
p 1-orange_b
p 1-black_b

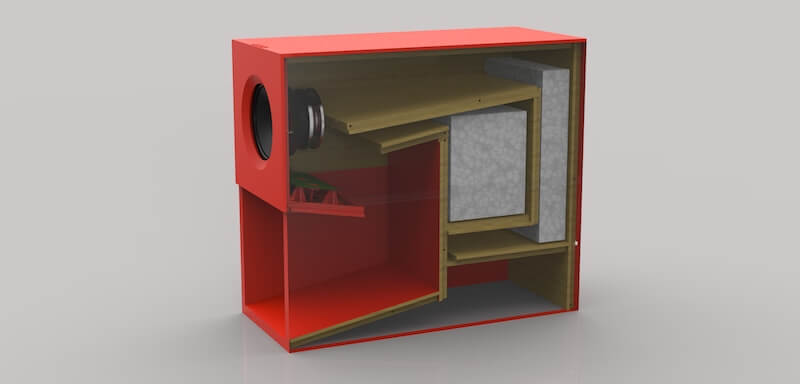

p 1-red_b
p 1-darkblue_b

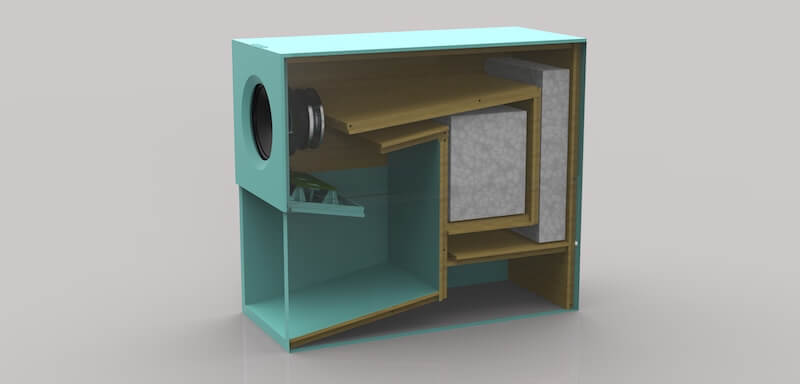

p 1-cyan_b
enclosure_iCon
Speaker

4” Full Range Transducer, FEMM Engineered Magnetic Motor, FEA Engineered Linear Suspension, Kevlar Impregnated Paper Diaphragm, 2.5% Ultra Low Distortion For High Fidelity Sound Reproduction
Frequency Range: 85-17kHz, SPL @ Rated Power: 96dB

Speaker_iCon
Enclosure

Designed With A.R.T. Technology, MDF Boards, Multi Color Selection, ABS Plastic Baffle and Controls, Polyester Fiber Damping, Silicone Rubber Feet

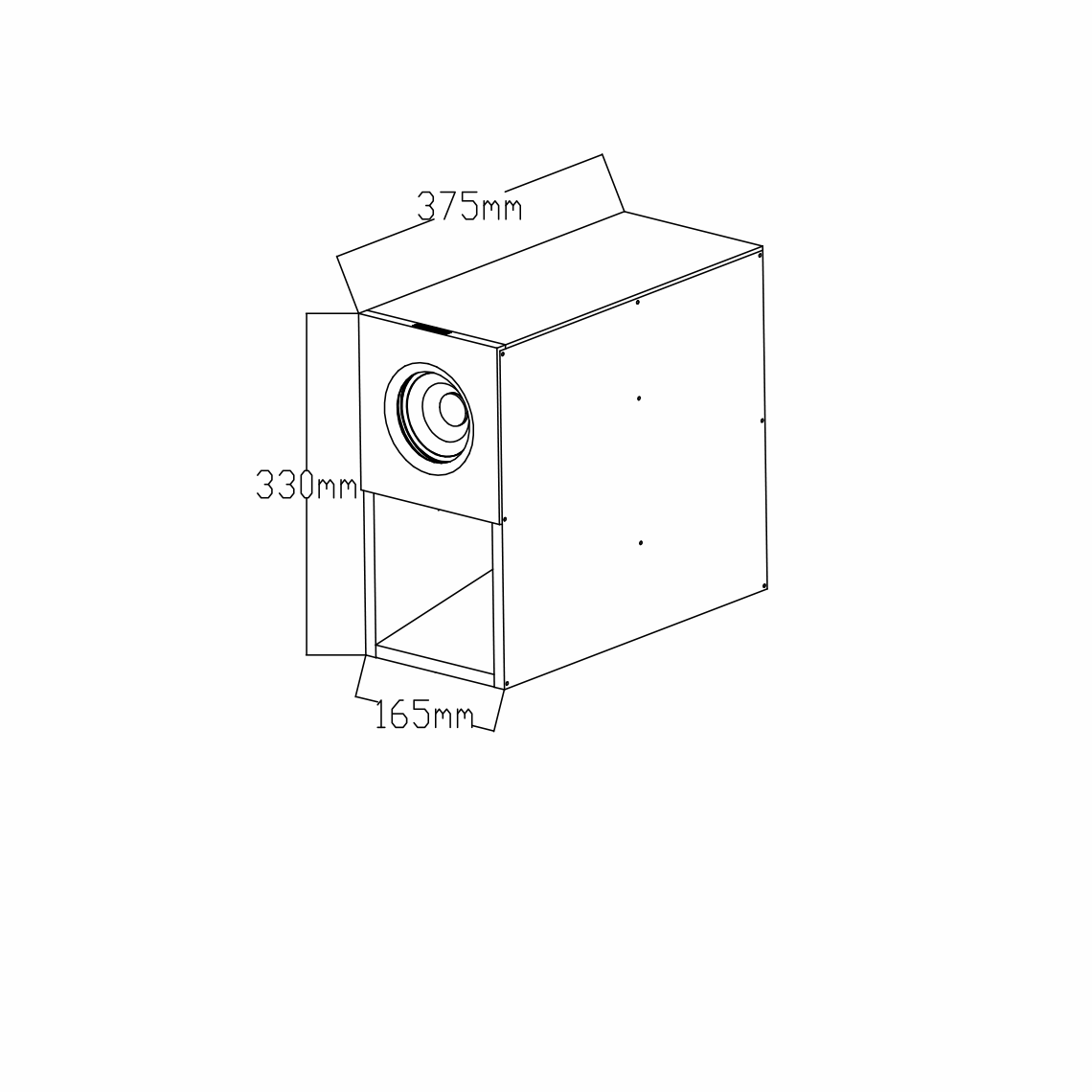

Dimensions W: 165mm x H: 330mm x D: 375mm, Weight: 5.7kg / 12.6lb

elec_iCon
Electronics

Bluetooth 5.0, AptX, True Wireless Stereo Pairing, 15W Powered Amplifier, Preset Parametric EQ Tuning, Play/Pause & Volume Control Buttons, 3.5mm AUX Input and Output
Power Adaptor 100-240V @ 50/60Hz, Plug Type A (or NEMA-1)

Sketch_A

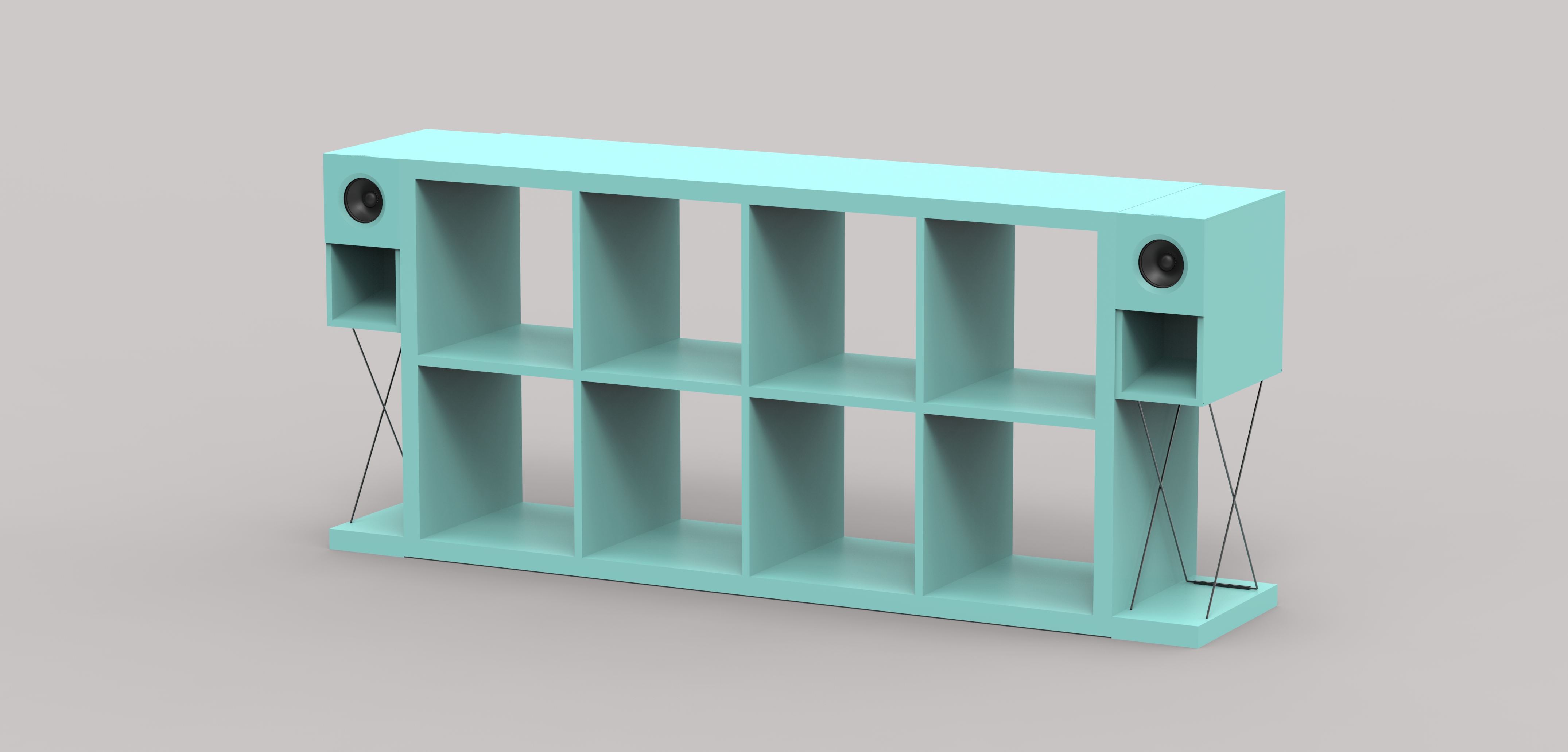

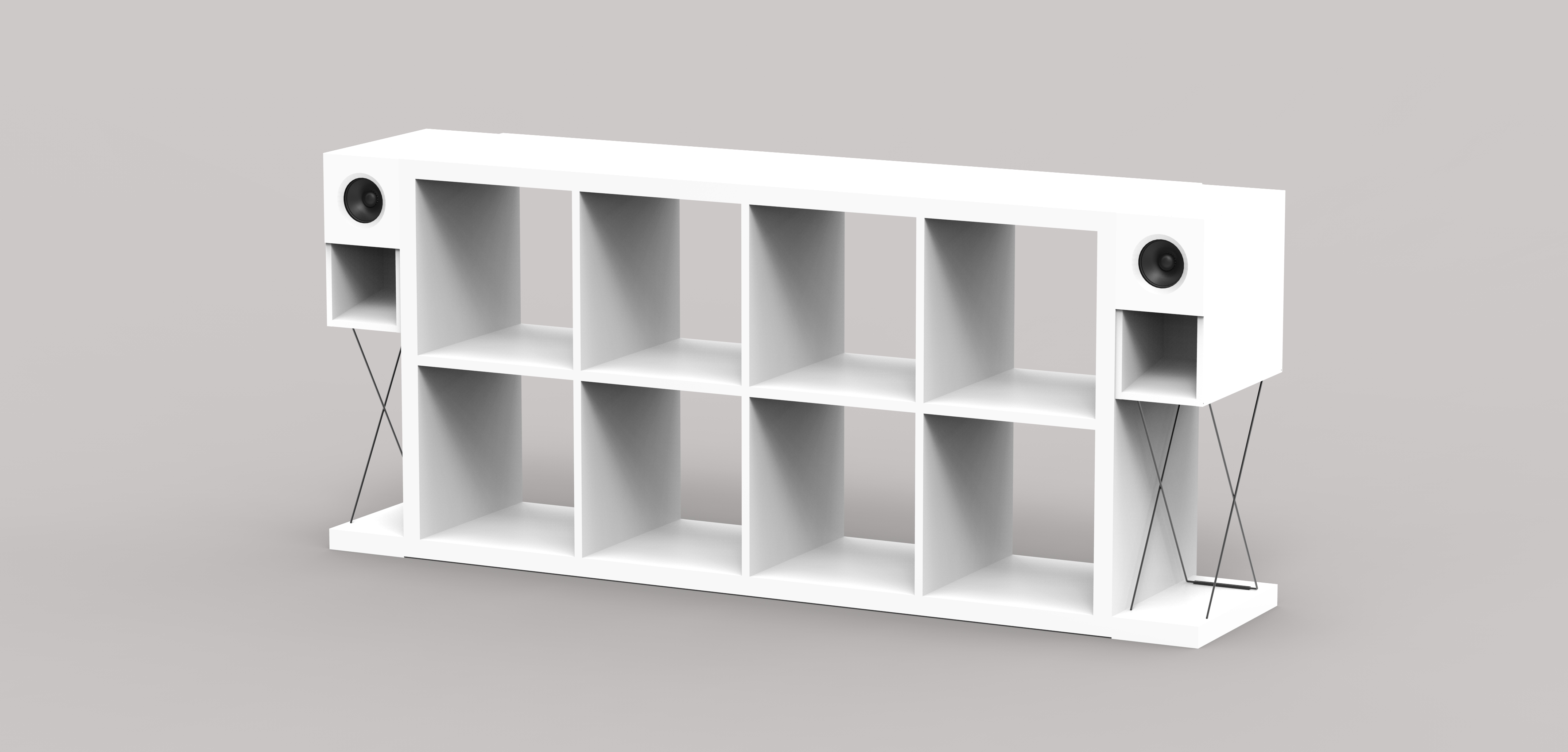

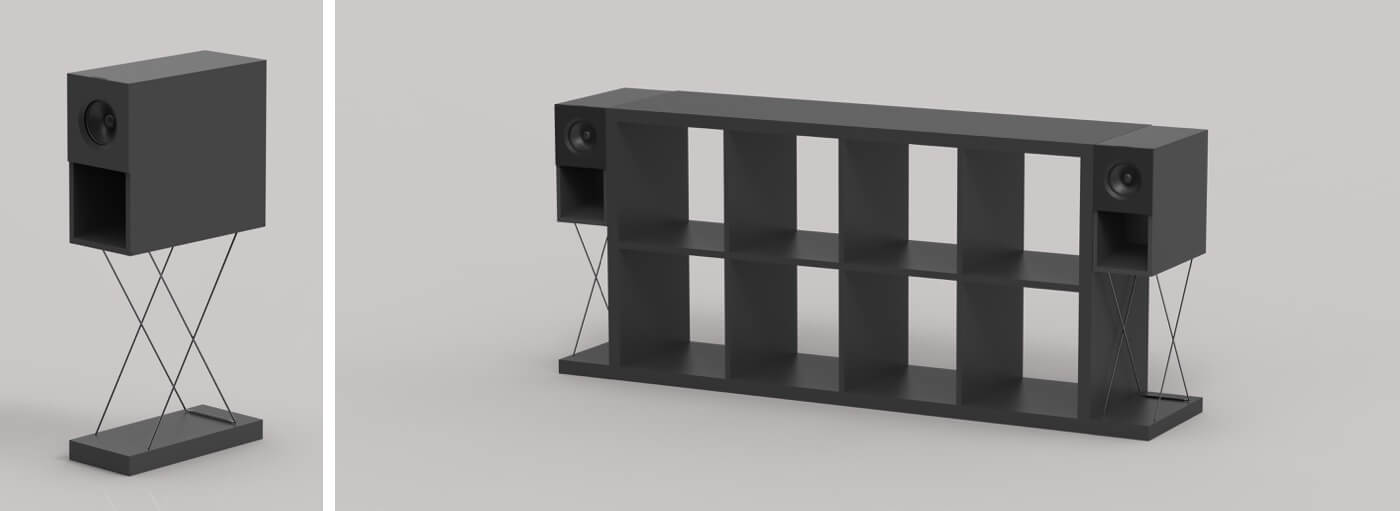

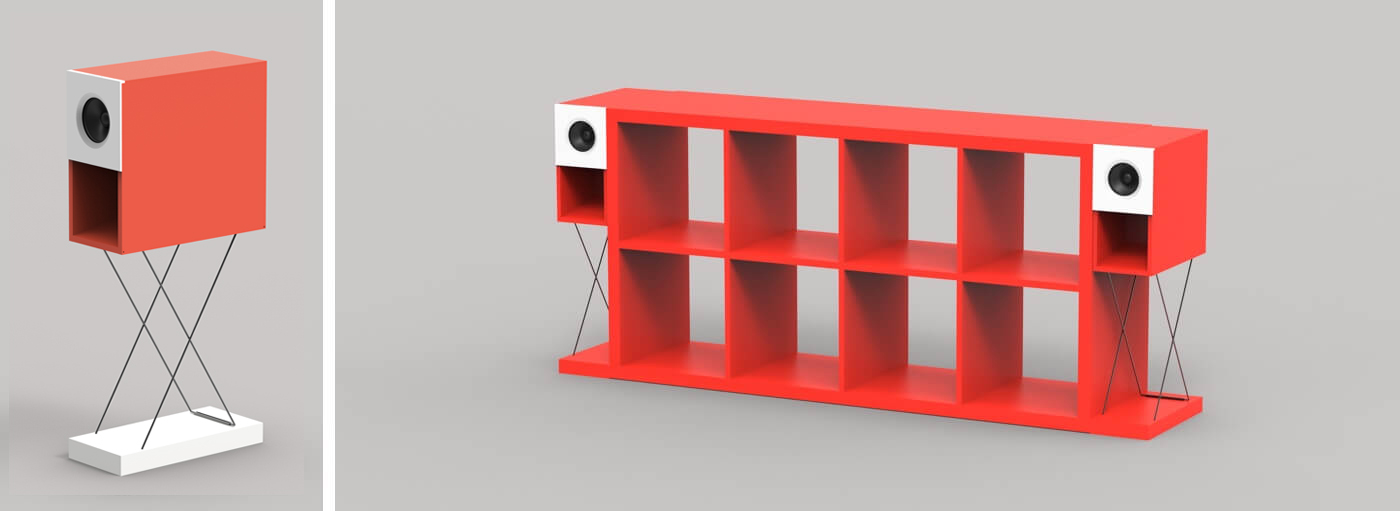

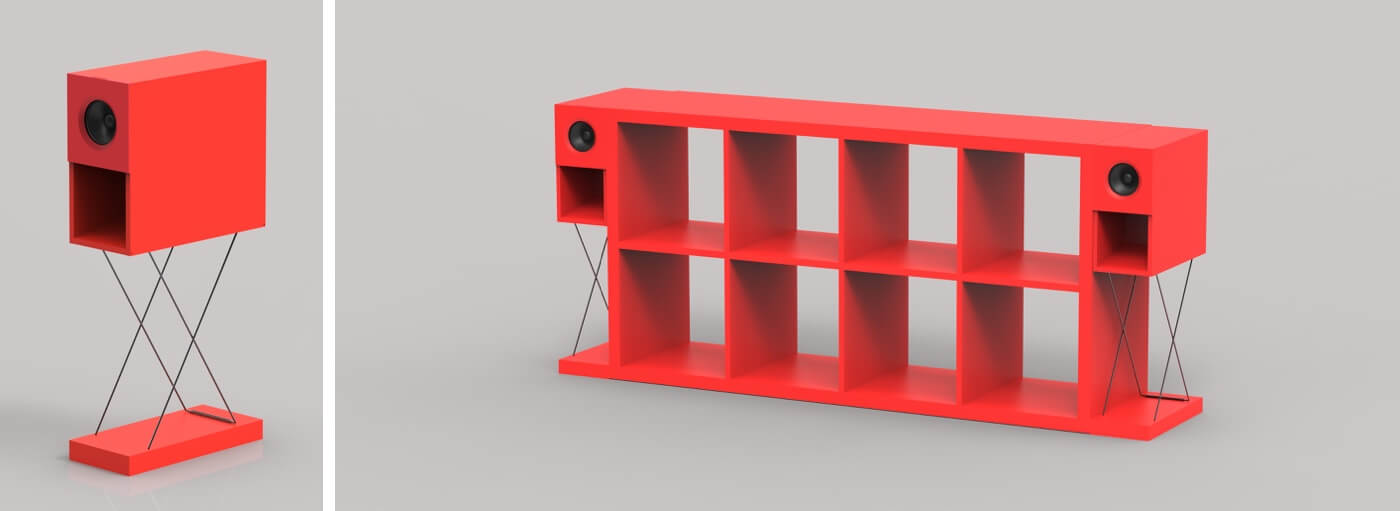

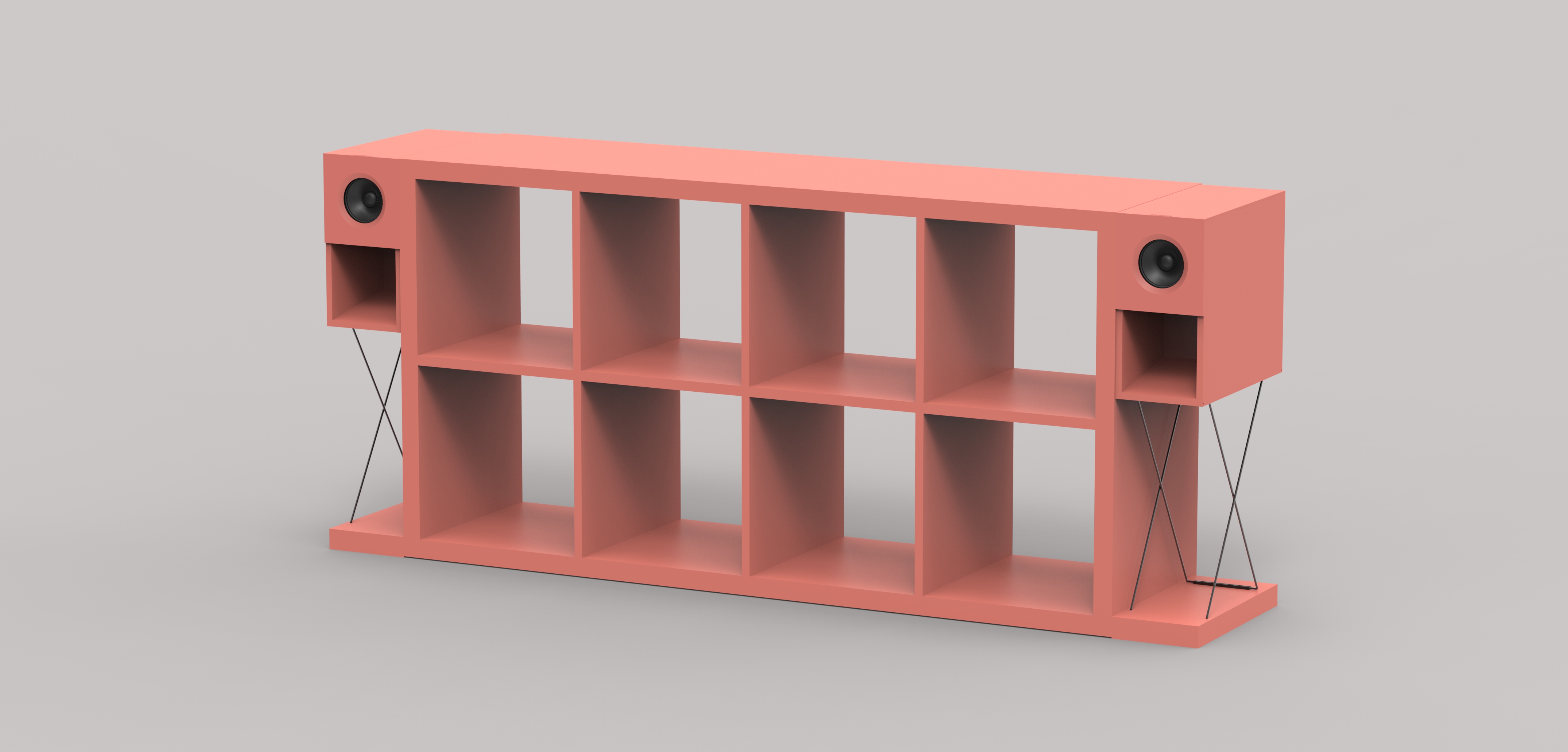

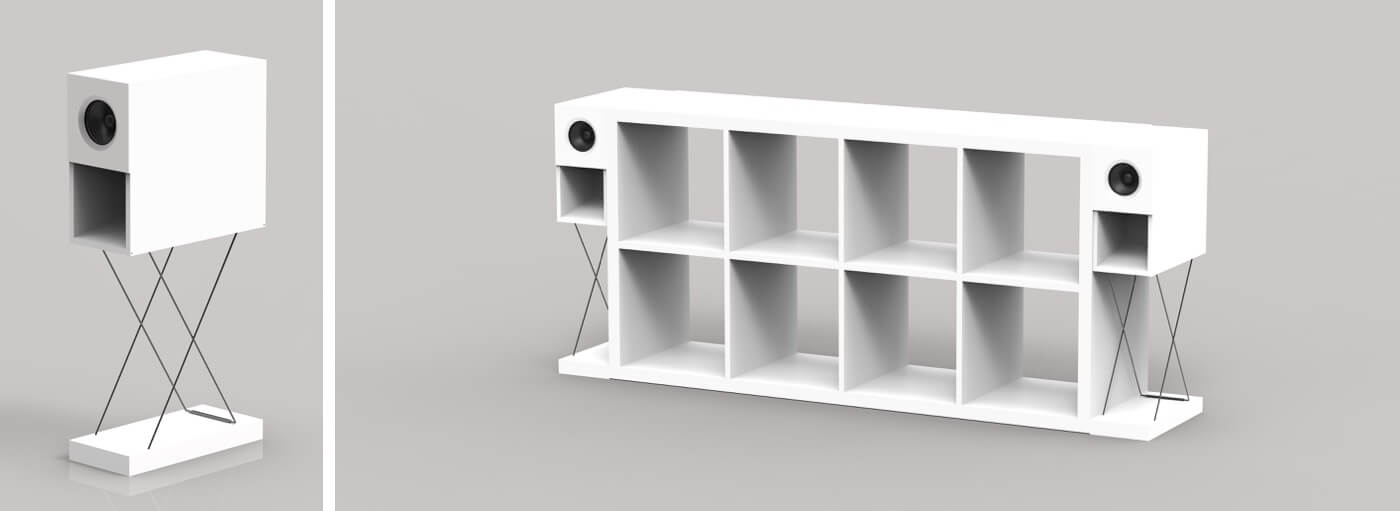

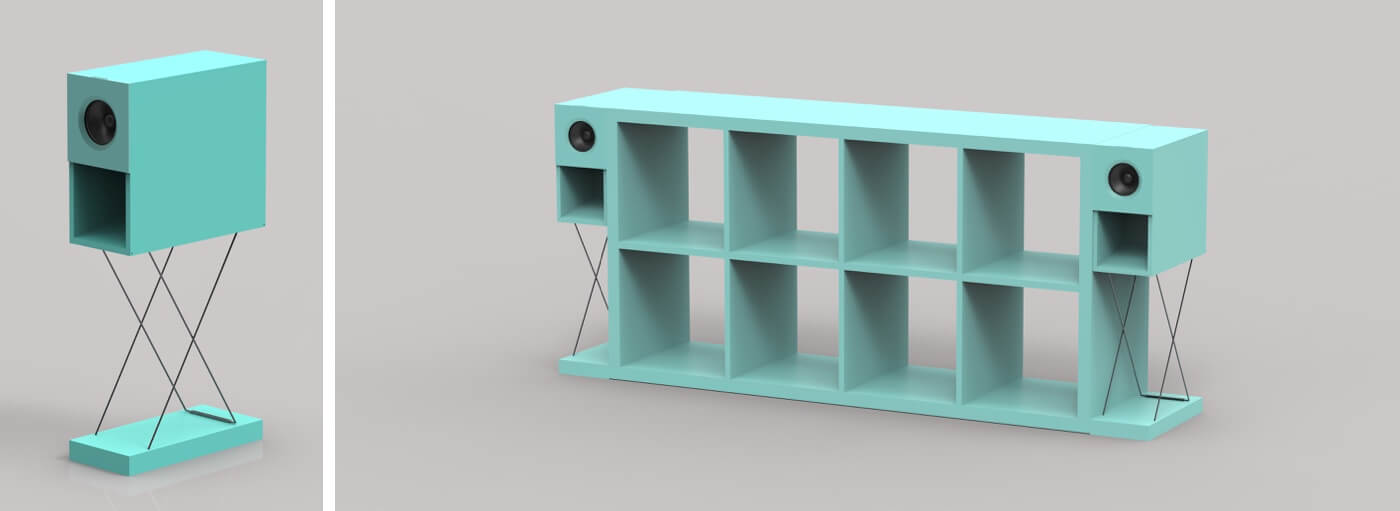

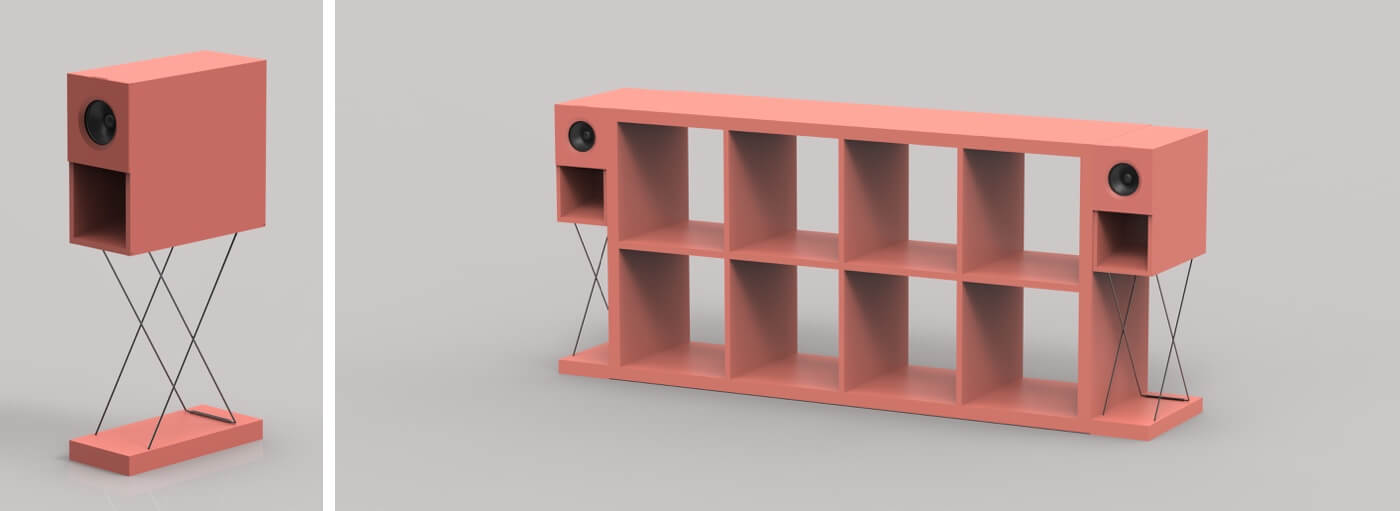

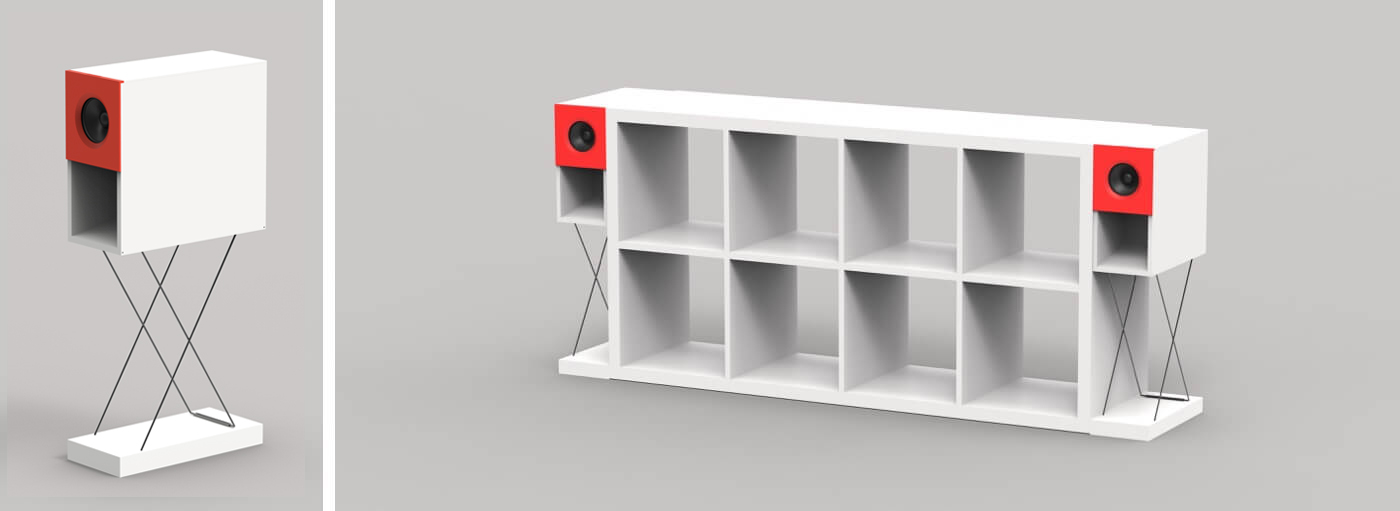

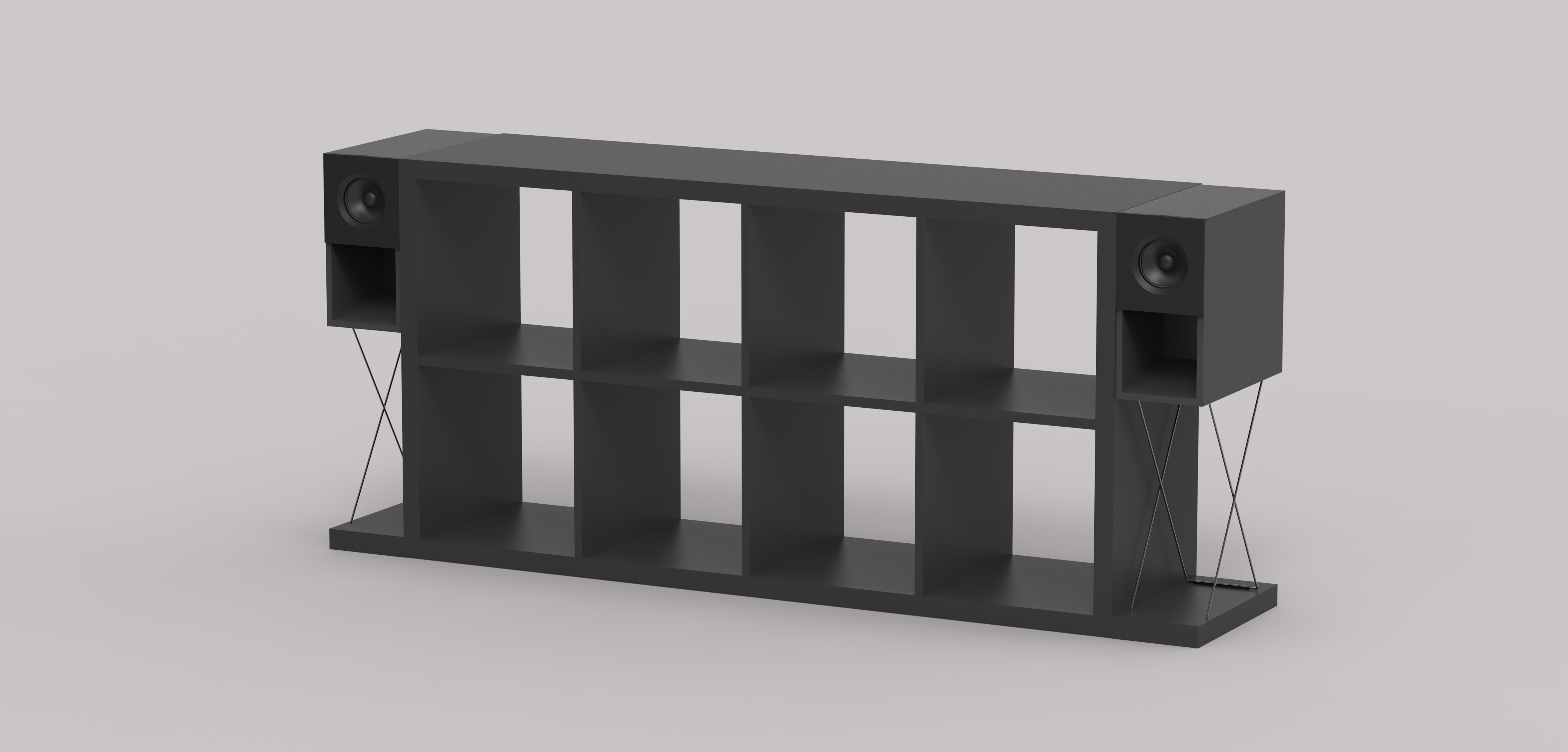

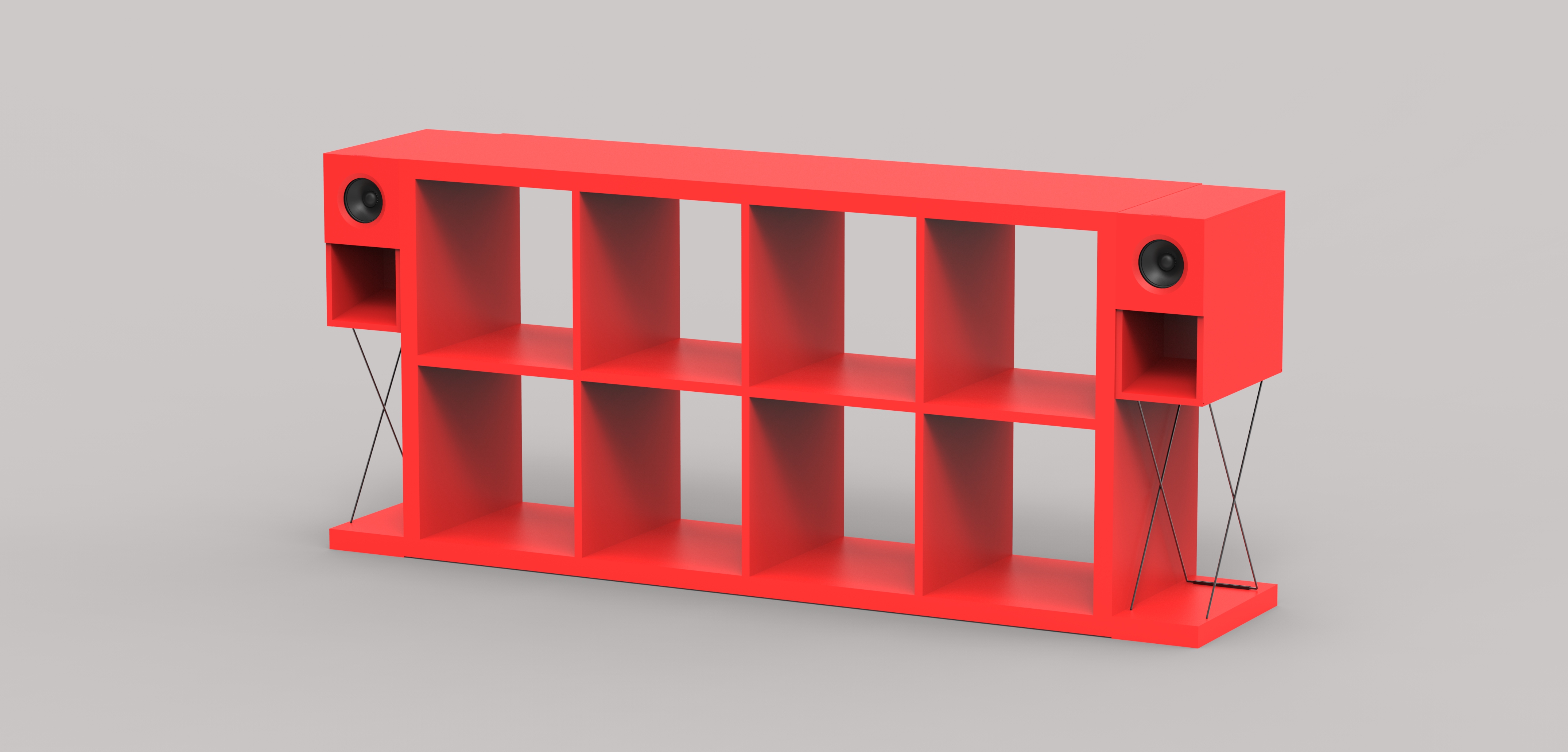

Omni-1.0 Stand

MDF Boards Wooden Base
Multi Color Selection, Steel Bar Crisscross Elevation, Silicone Rubber Feet, Standing
Dimensions W: 165mm x H: 770mm x D: 375mm, Weight: 6.8kg / 15lb

sub white_a
sub black_a
sub red_a
sub darkblue_a
sub cyan_a
sub orange_a
sub orange_a
sub orange_a
sub white_b
sub black_b
sub red_b
sub darkblue_b
sub cyan_b
sub orange_b
sub orange_b
sub orange_b
Sketch_B

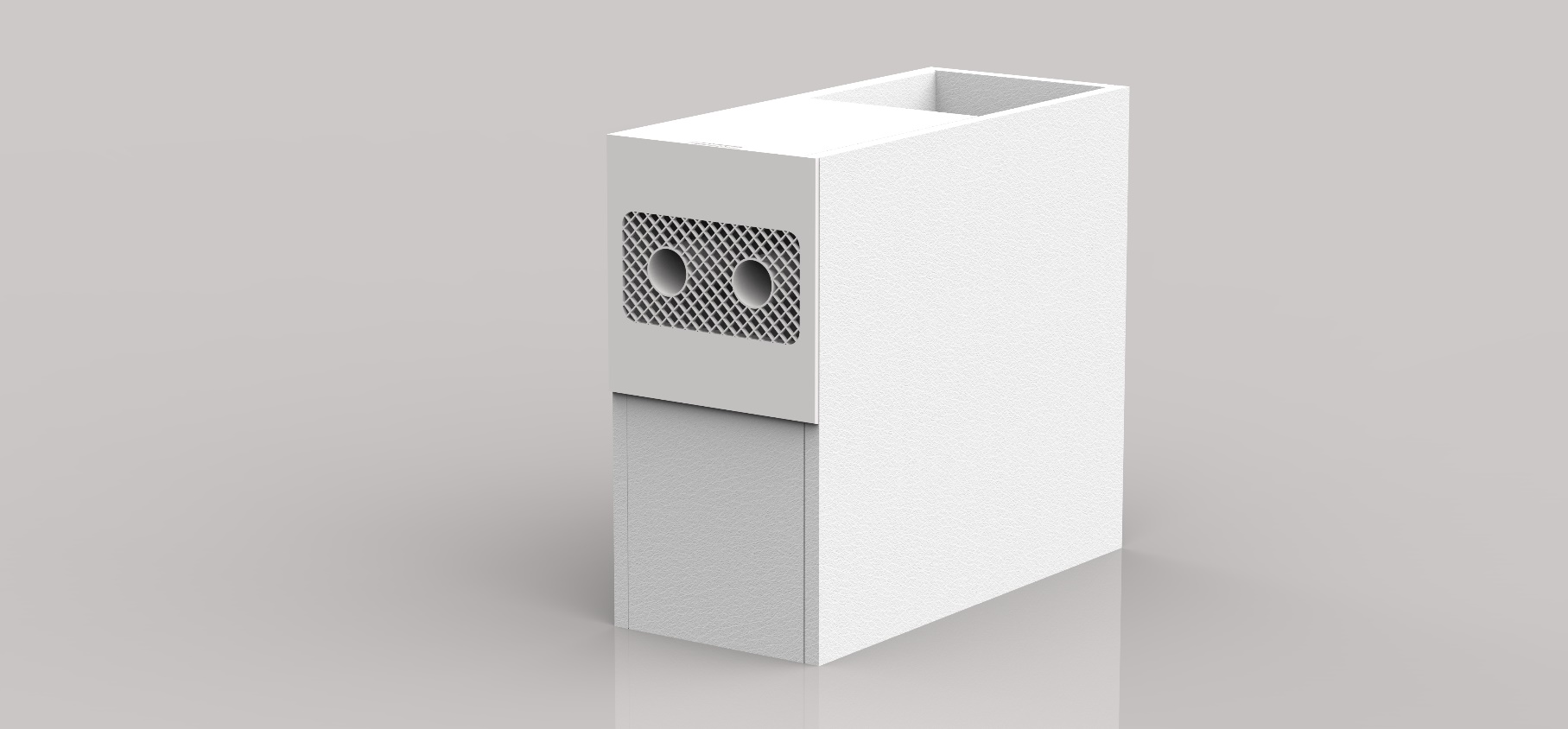

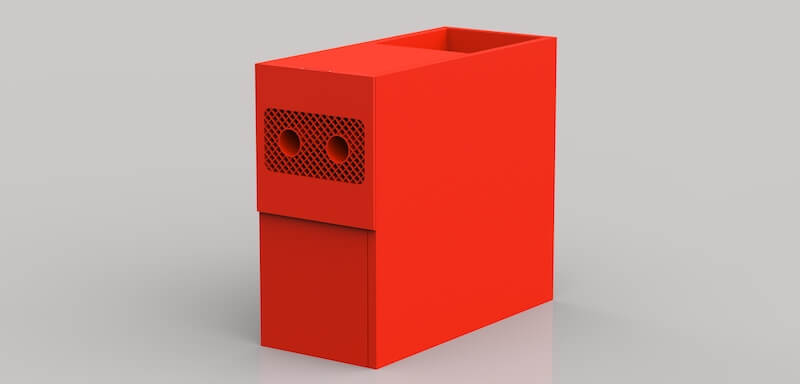

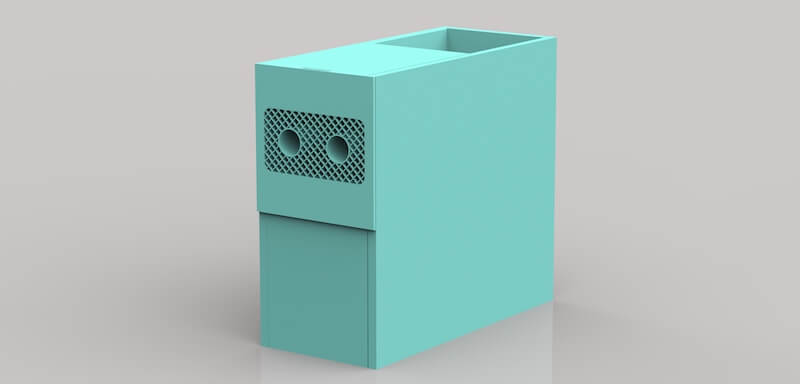

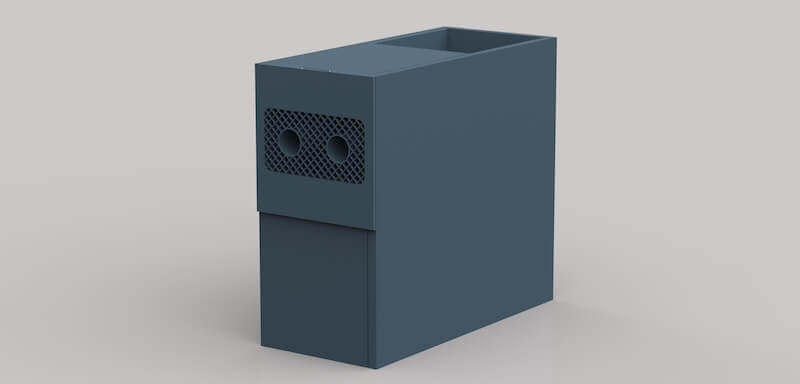

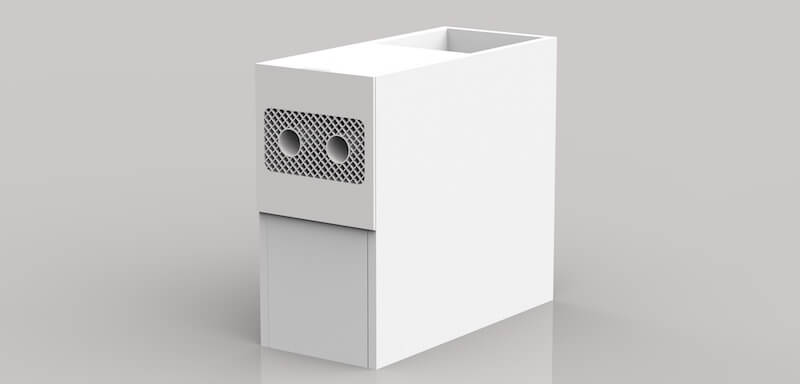

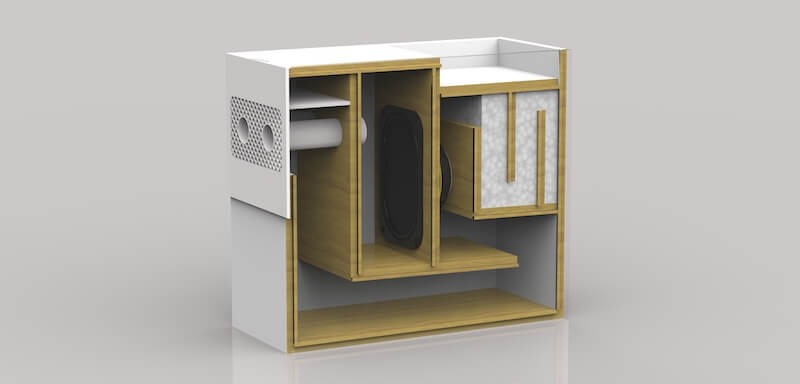

Onyx-1.0

For those who love that extra bit of bass
Simply add the Onyx-1.0, which is plug and play.

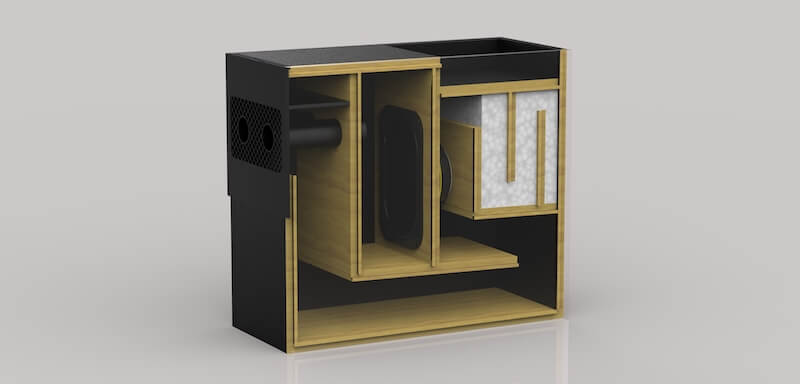

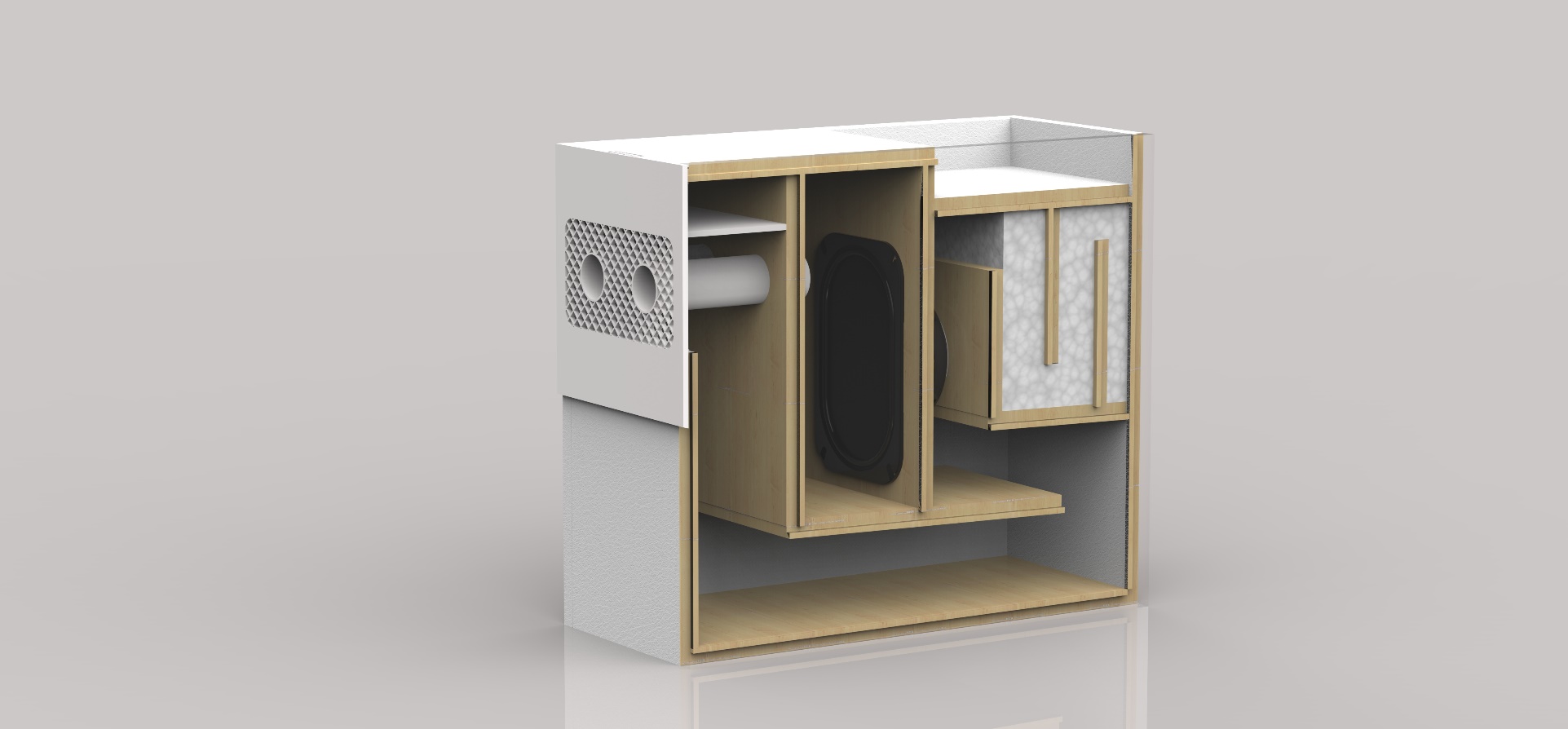

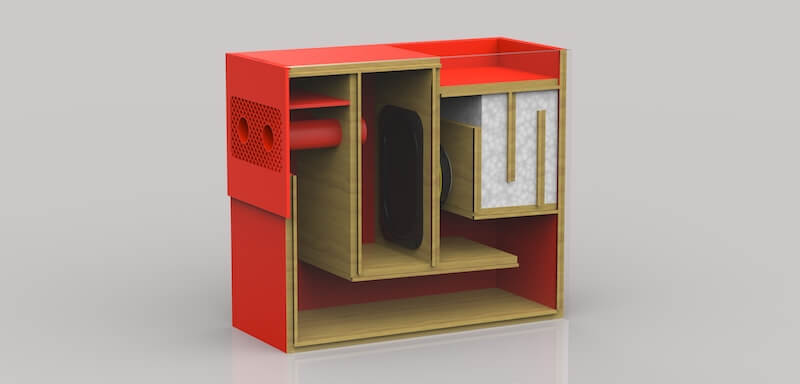

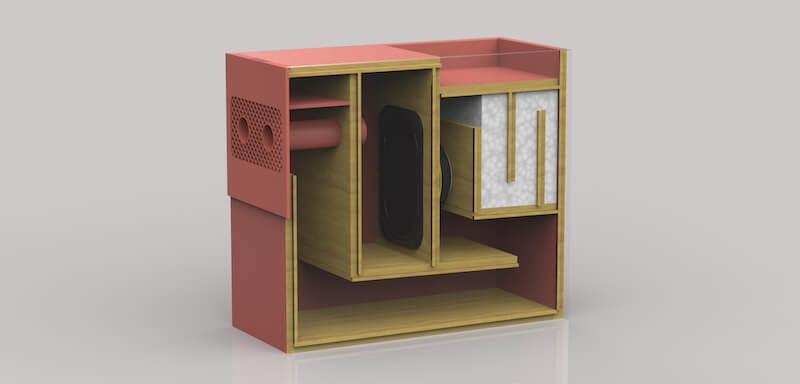

The carefully designed cabinet extends the sound waves, resulting in a deeper bass without rumble.

sub white_a
sub black_a
sub red_a
sub darkblue_a
sub cyan_a
sub orange_a
sub white_b
sub black_b
sub red_b

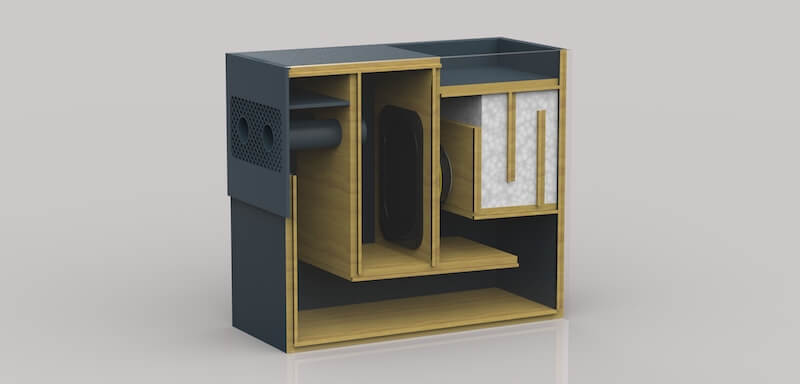

sub darkblue_b

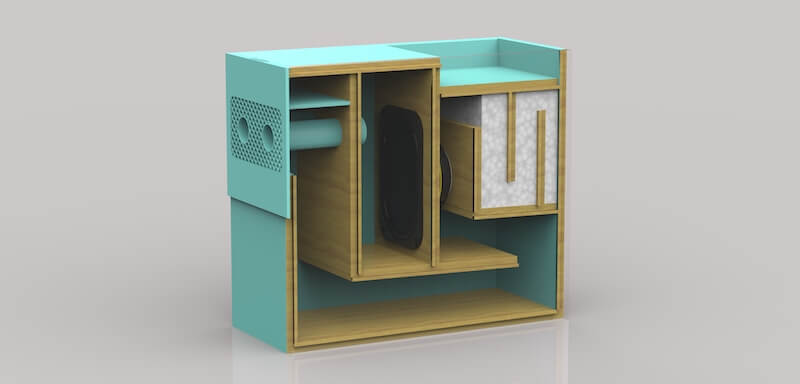

sub cyan_b
sub orange_b
enclosure_iCon
Speaker

4” x 6.5” Race Track Shaped Subwoofer Transducer, Slim Mounting Depth Construction, FEMM engineered magnetic motor, FEA engineered linear suspension, Injection Diaphragm With Reinforced Ribs
Long Throw Excursion For Low Distortion High Output Bass, Frequency Range: 35-80Hz, SPL @ Rated Power: 96dB

Speaker_iCon
Enclosure

Designed With A.R.T. Technology, MDF Boards, Multi Color Selection, ABS Plastic Baffle and Controls, Polyester Fiber Damping, Silicone Rubber Feet
Dimension W:165mm x H: 330mm x D: 375mm, Weight: 6.8kg / 15lb

elec_iCon
Electronics

25W Digital Powered Amplifier, Volume/Phase & High Frequency Filter Controls, 3.5mm AUX Input And Output, Power Adaptor 100-240V @ 50/60Hz, Plug Type A (or NEMA-1)

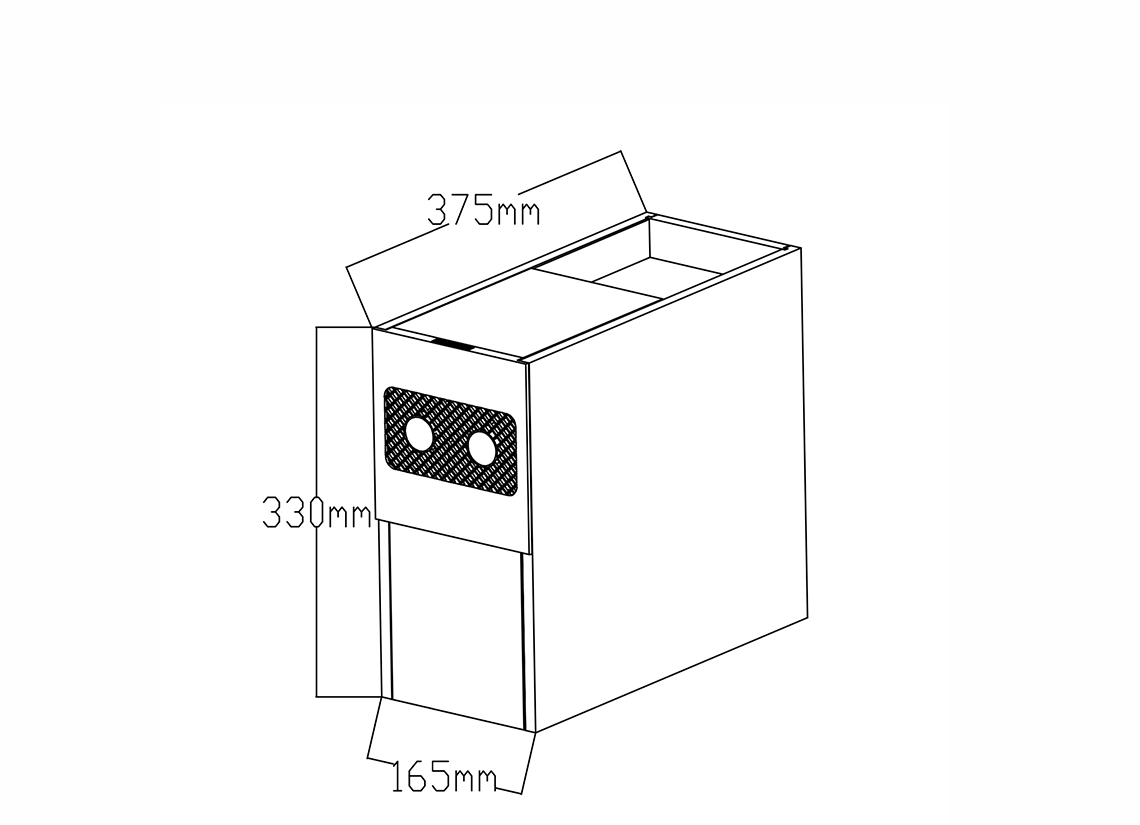

Sketch_C

Manual

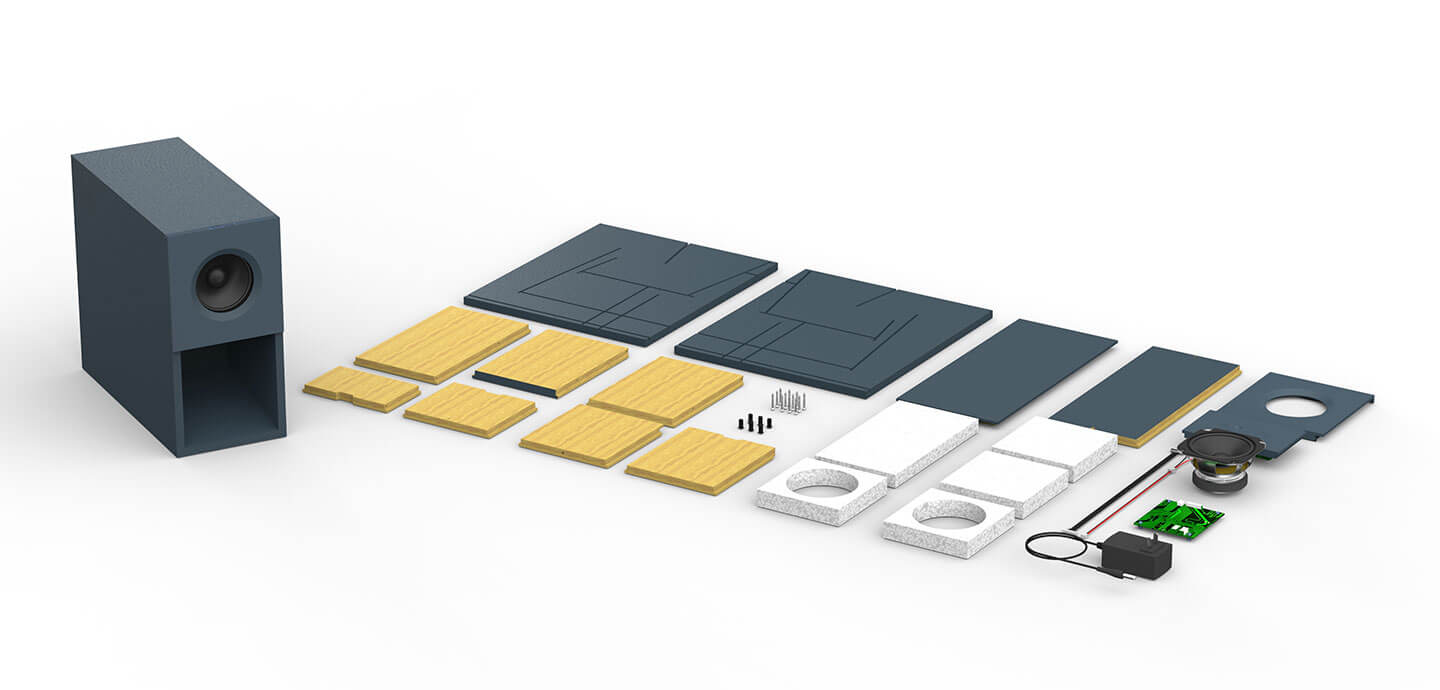

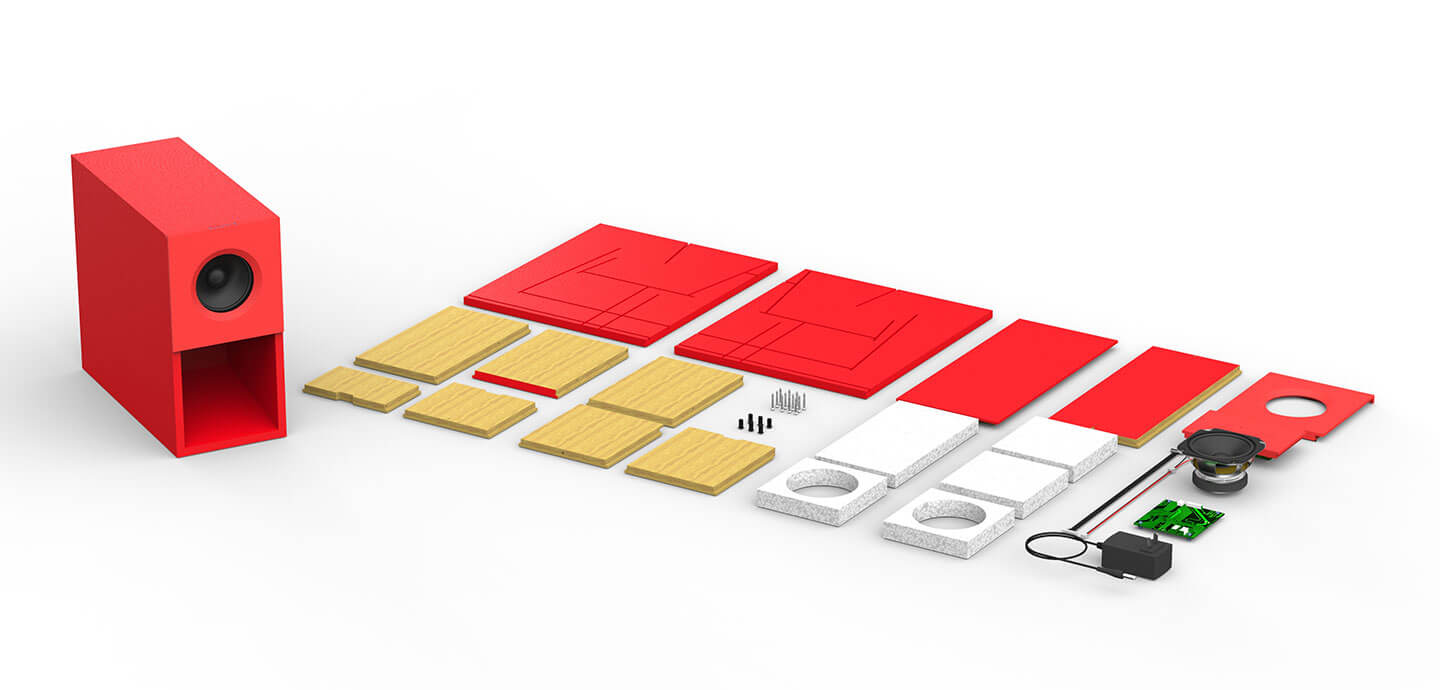

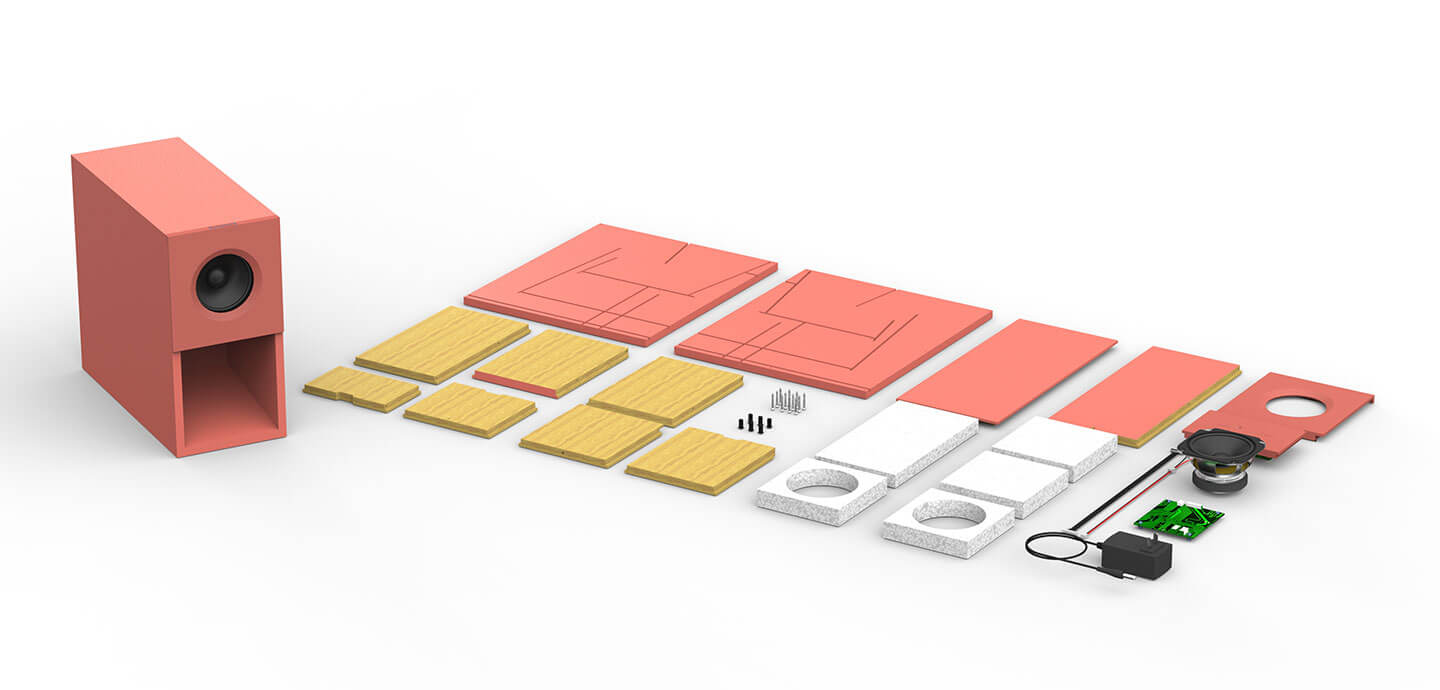

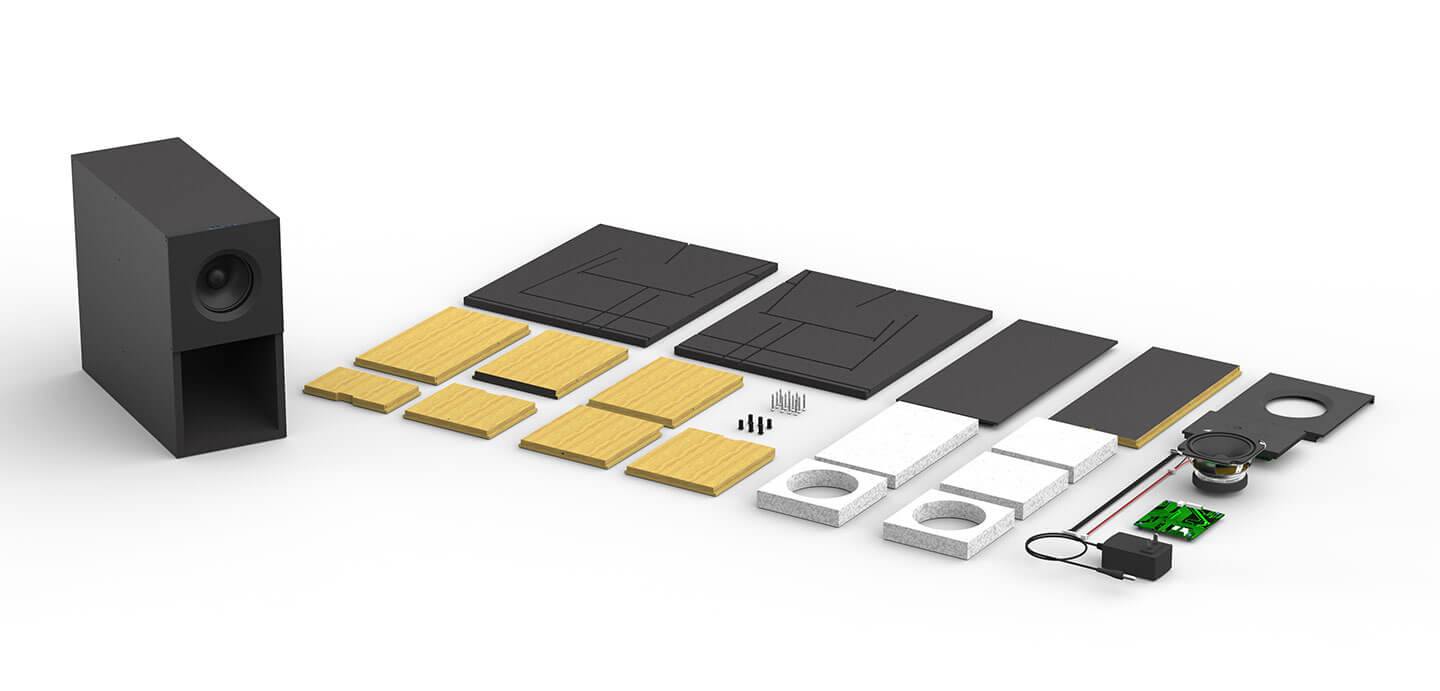

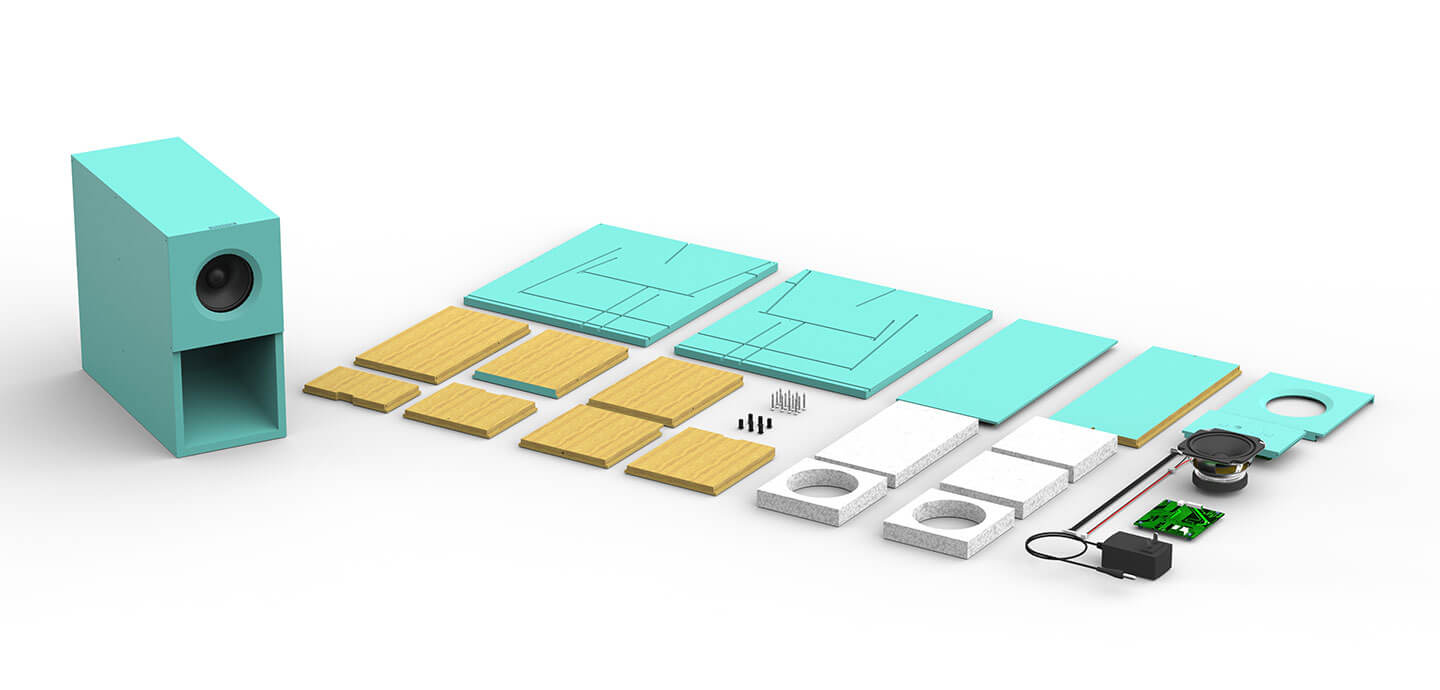

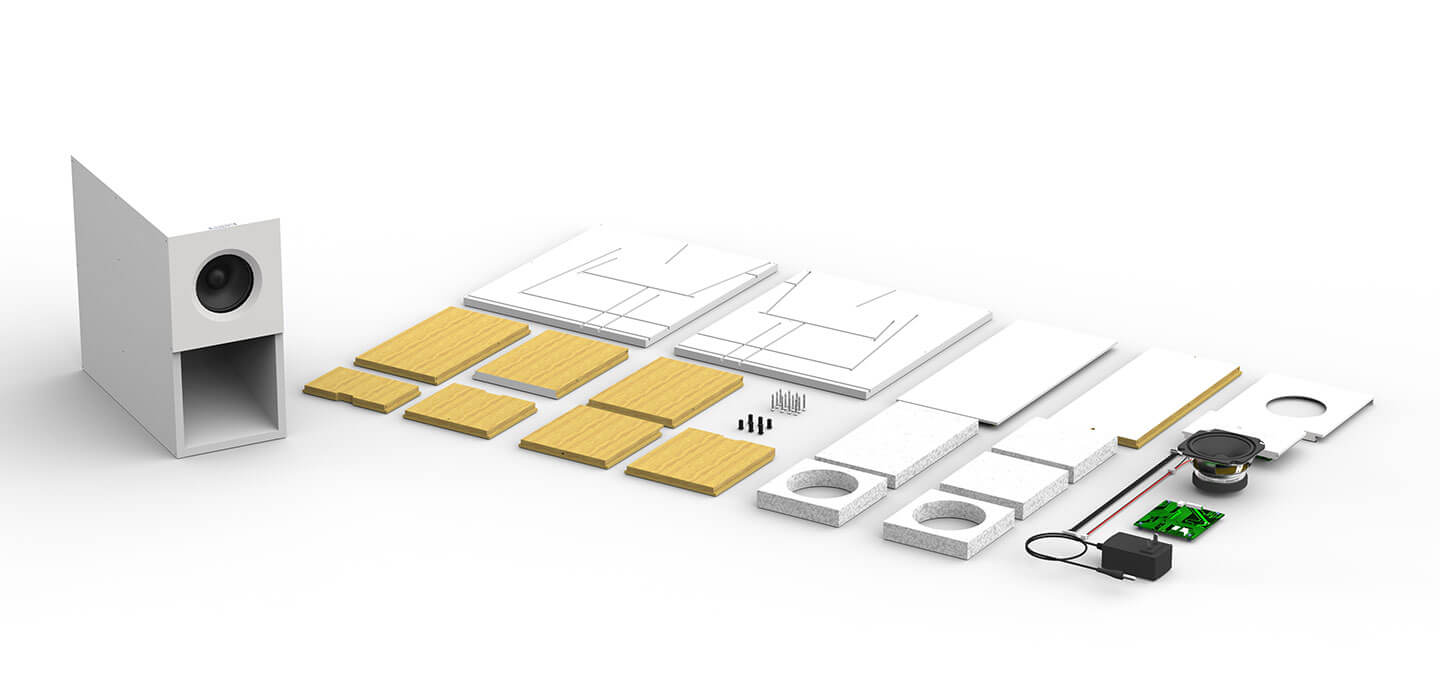

The B.I.Y. package comes with a clear manual.

Under Development

At REAXT we are constantly designing and developing new speakers that can to be used in combination with your favorite furniture. We try to optimize our products in such a way that they take up the least space possible, all whilst delivering high fidelity quality.

Subber

SS46DS

A slim subwoofer that perfectly fits under the lowest shelf of your bookshelf.

Smaller

SL2F

A super narrow speaker that takes the place of a thick book.

Solario

ST2F

A portable solar powered outdoor speaker.

Porta

BR2F

A handy portable speaker.

Flatwall

PT2F

A flat in-wall high range speaker.

Contact

Get in touch with us

Charlie Kao

+86 138-1665-1119

charlie@REAXT.com

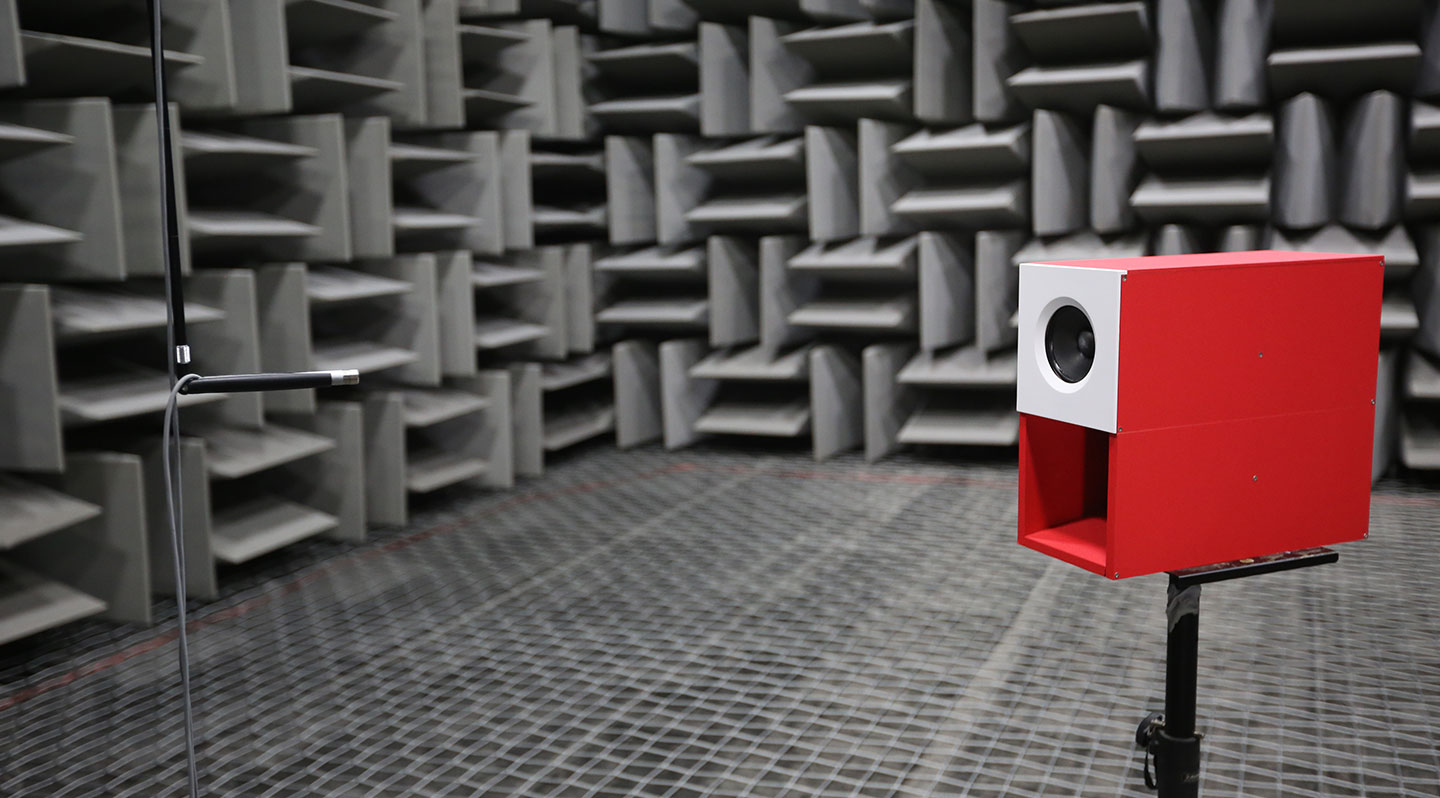

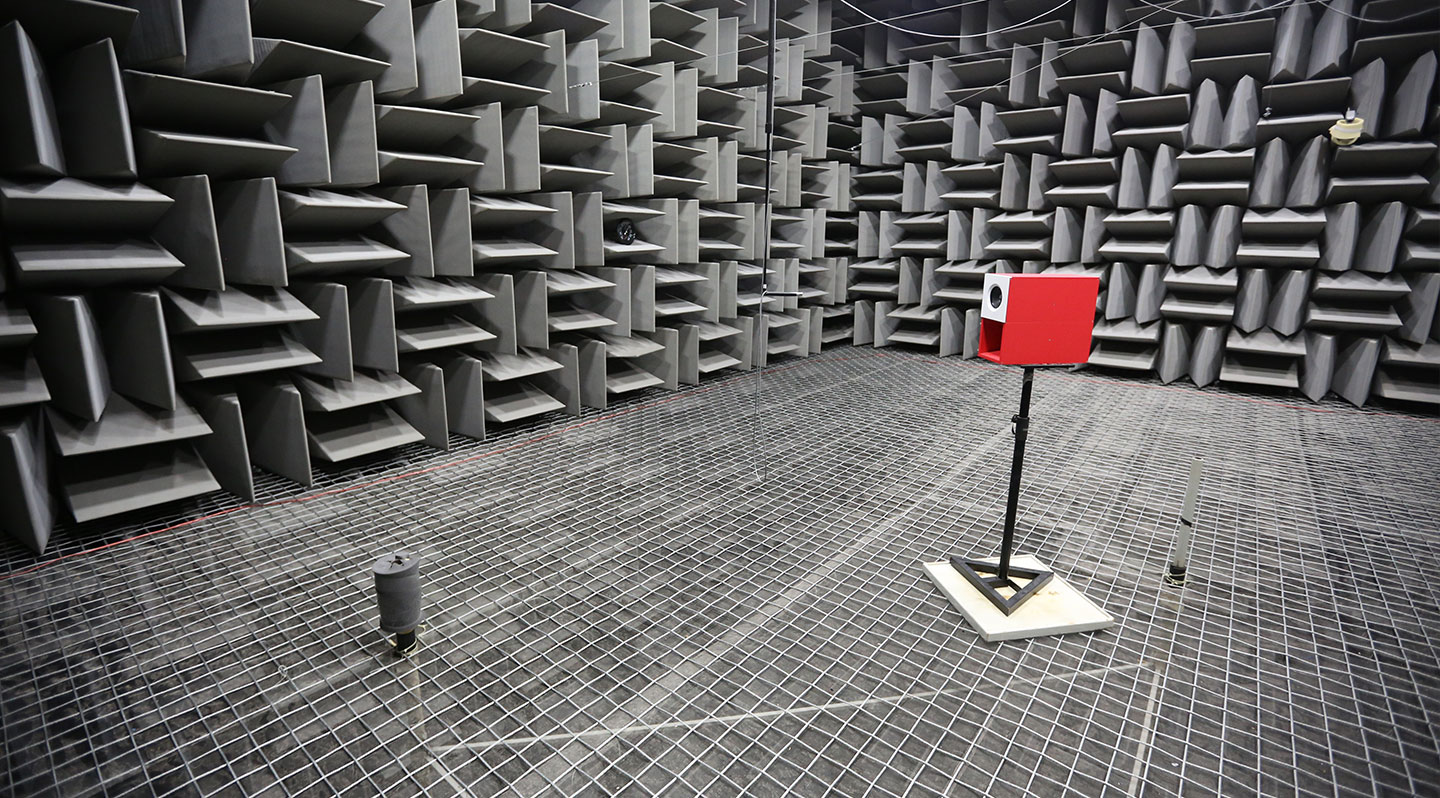

Anechoic Chamber

To better analyze the acoustic performance of our speakers, we measure and engineer all of them in our in-house anechoic chamber.
Here we evaluate the on-axis frequency response, the impulse response, the cumulative spectral decay, the polar response,
the step response, the efficiency/sensitivity ratio, the distortion and the dynamics.

Technical

REAXT's patented A.R.T. (Absorption, Reflection, Transmission) technology soaks up wayward energy and reduces resonances to the point of insignificance. Hence that our overly "simple" speaker produces an excellent sound.

Other Speakers

others_Mini

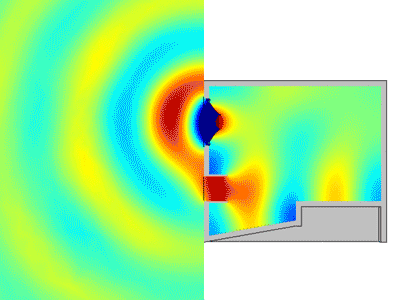

A common source of distortion in loudspeaker systems is internal acoustic resonances of the cabinet. High pressures can build up behind drivers at internal resonance frequencies of the cabinet, which affect the movement of the driver and thus color the far-field sound.

REAXT Omni-1.0

us_Mini

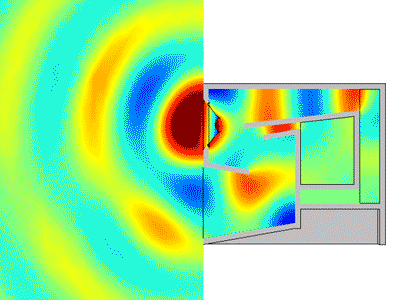

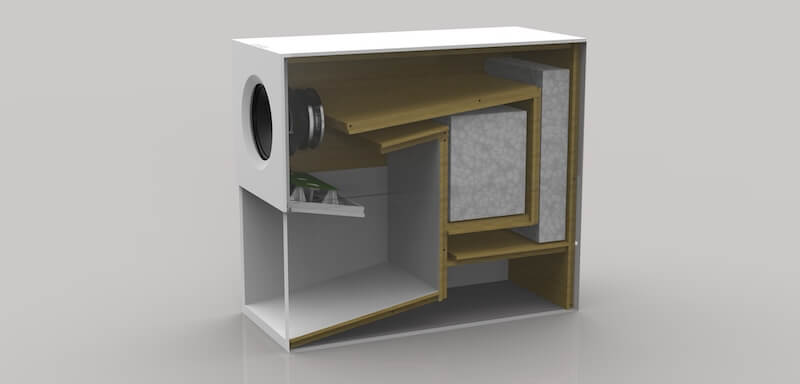

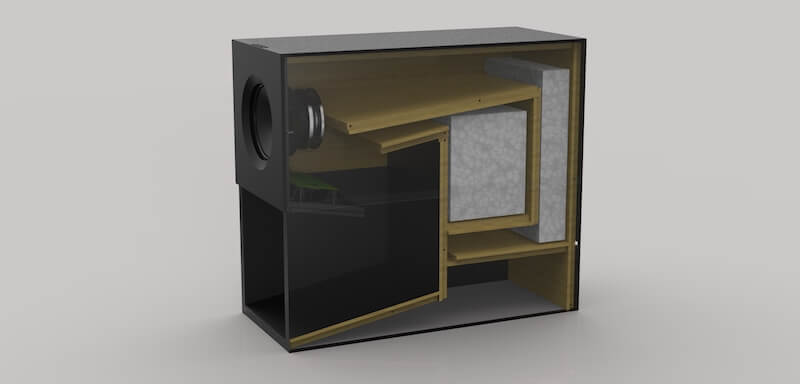

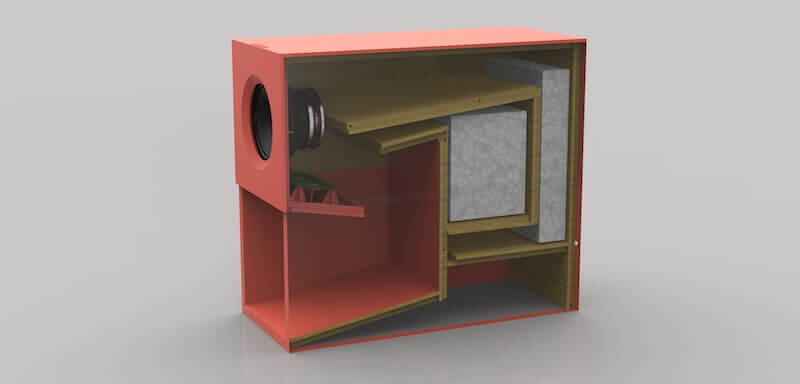

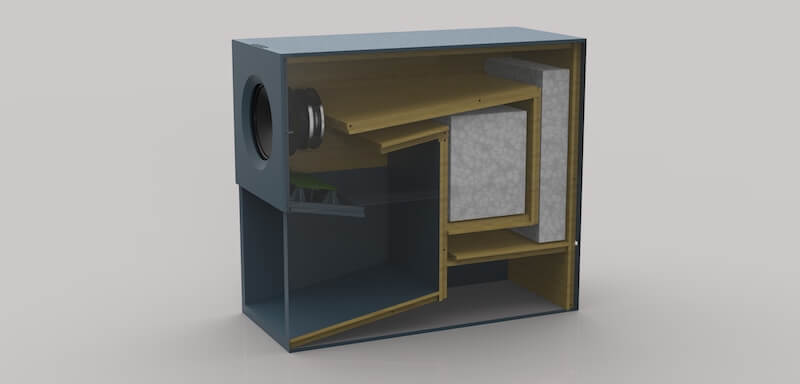

Our carefully designed inverted horn offers a smooth change in acoustic impedance, which when used in conjunction with an absorbent material, results in a cabinet structure free of internal acoustic resonances. Simply said, the high and mid frequencies of the Omni-1.0 are much cleaner in sound.

Validating acoustic response in our anechoic chamber

To better analyze the acoustic performance of our speakers, we measure and engineer all of them in our in-house anechoic chamber.
Here we evaluate the on/off-axis frequency response, the impulse response, the cumulative spectral decay, the polar response,
the step response, the sound pressure level, the distortion and the dynamics.

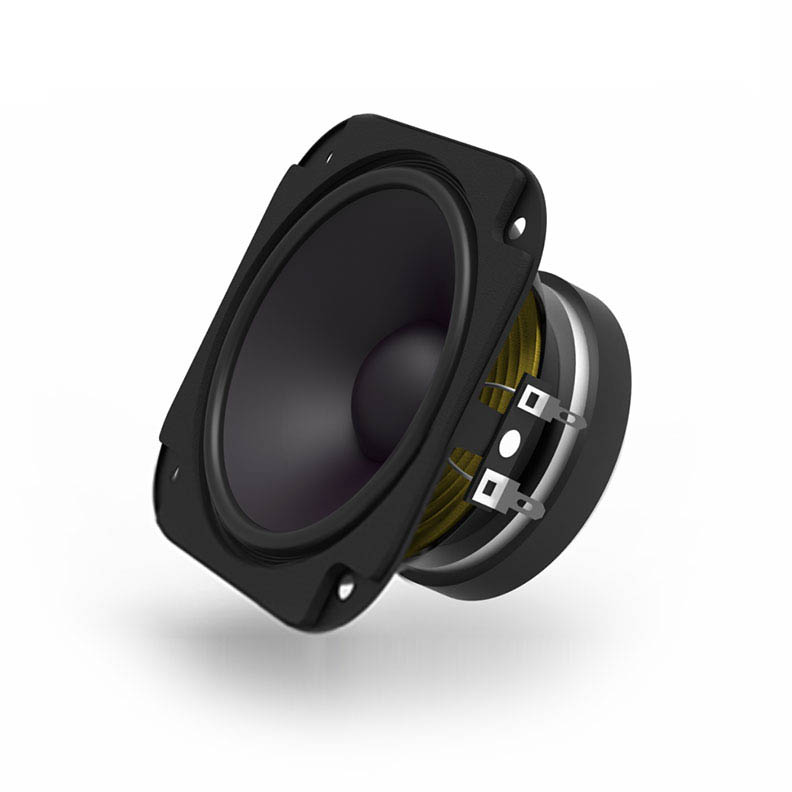

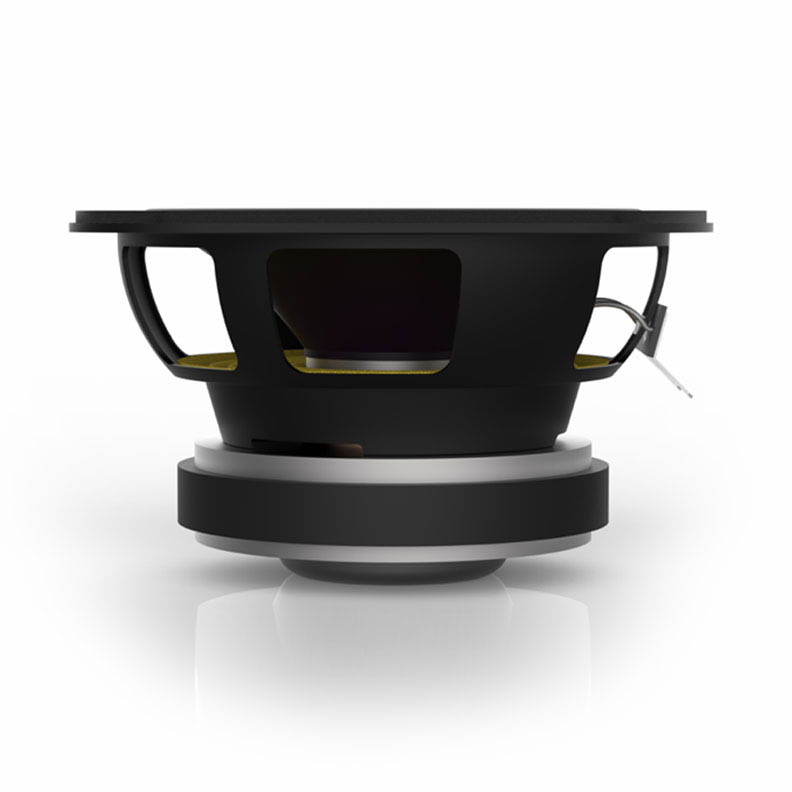

High Fidelity 4” Incredible Full Range Transducer

tech_pics_a
tech_pics_b

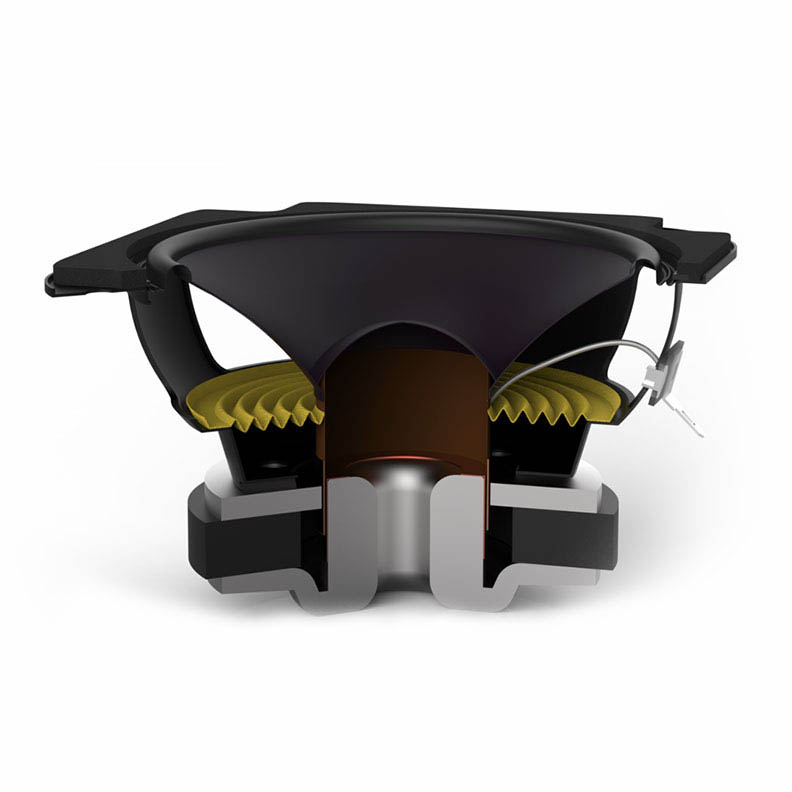

Material Content

tech_pics_c
  1. Stamp steel basket with heavy powder coating

  2. Nickel plated spade terminals for better conductivity

  3. Firm EVA gasket for best installation

  4. 7oz Premium grade strontium magnet

  5. Zinc plated magnetic plates

  6. Light weight copper clad aluminum coil

  7. Polyimide film as voice coil former

  8. Synthetic fiber mixed cotton as spider

  9. Butyl rubber laminated on cloth surround for high damping

  10. Kevlar impregnated paper diagram and dust cap

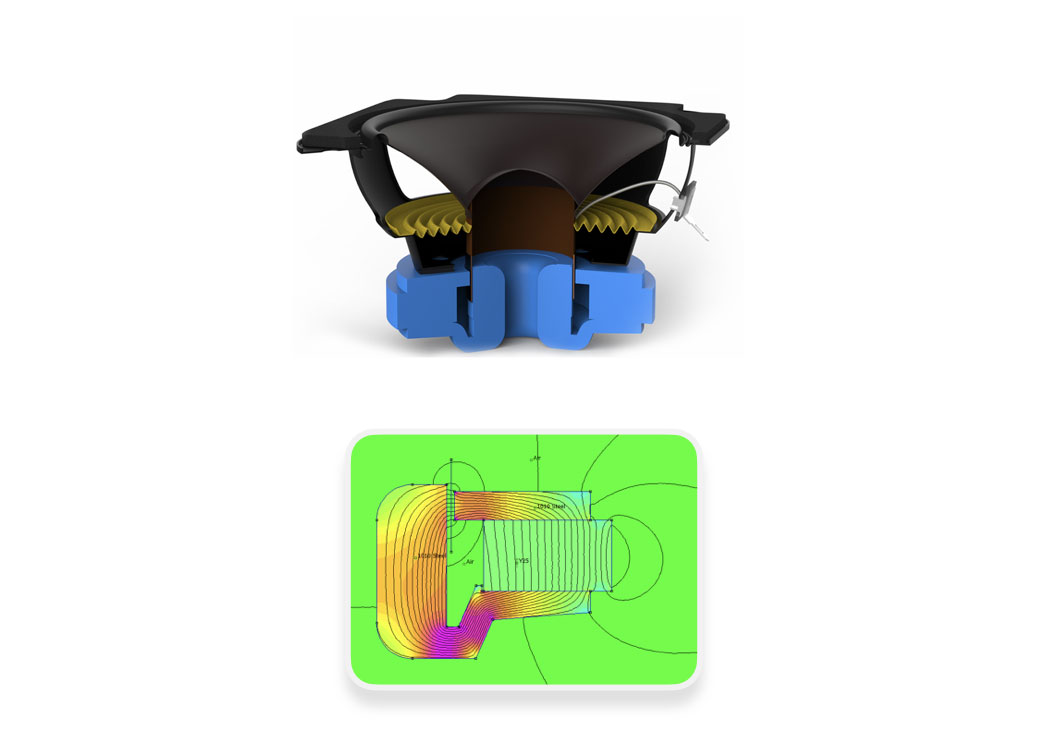

FEMM engineered magnetic motor with demodulation ring

tech_pics_d

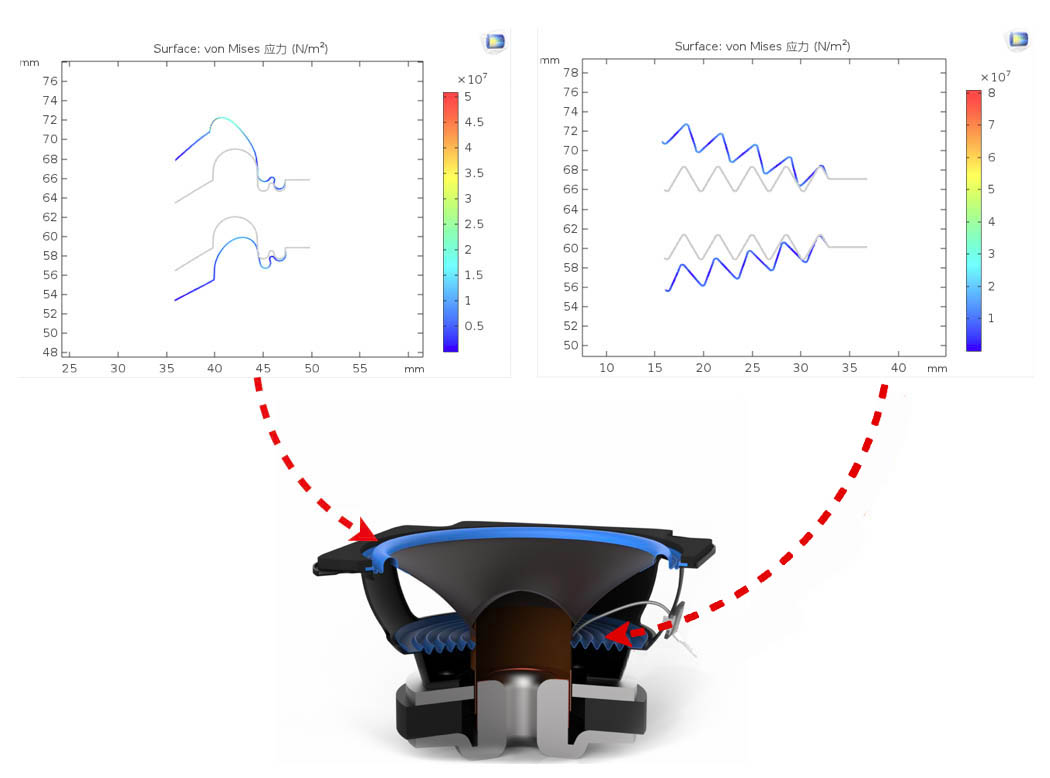

FEA engineered linear suspension

tech_pics_e

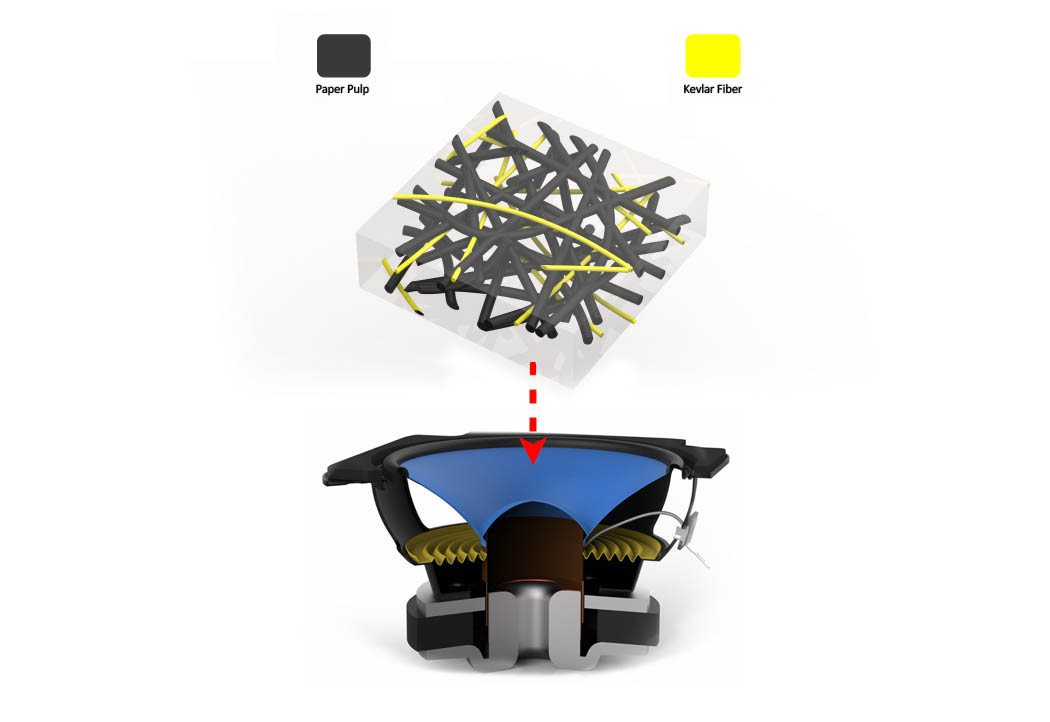

Kevlar impregnated paper diaphragm

tech_pics_f

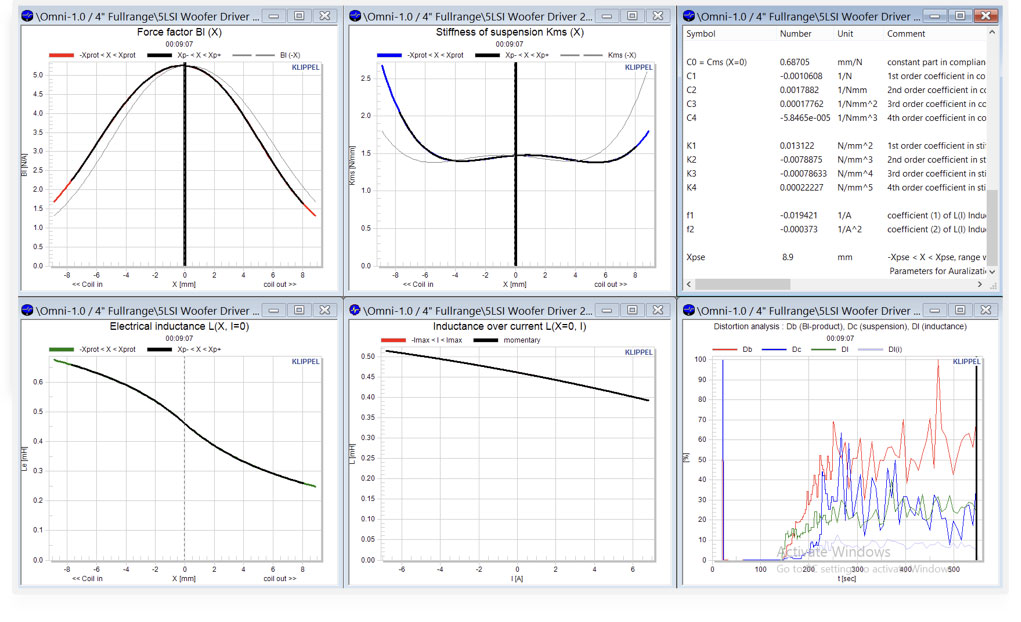

Diagnosing behavior of transducer to sure better performance and reliability

tech_pics_g

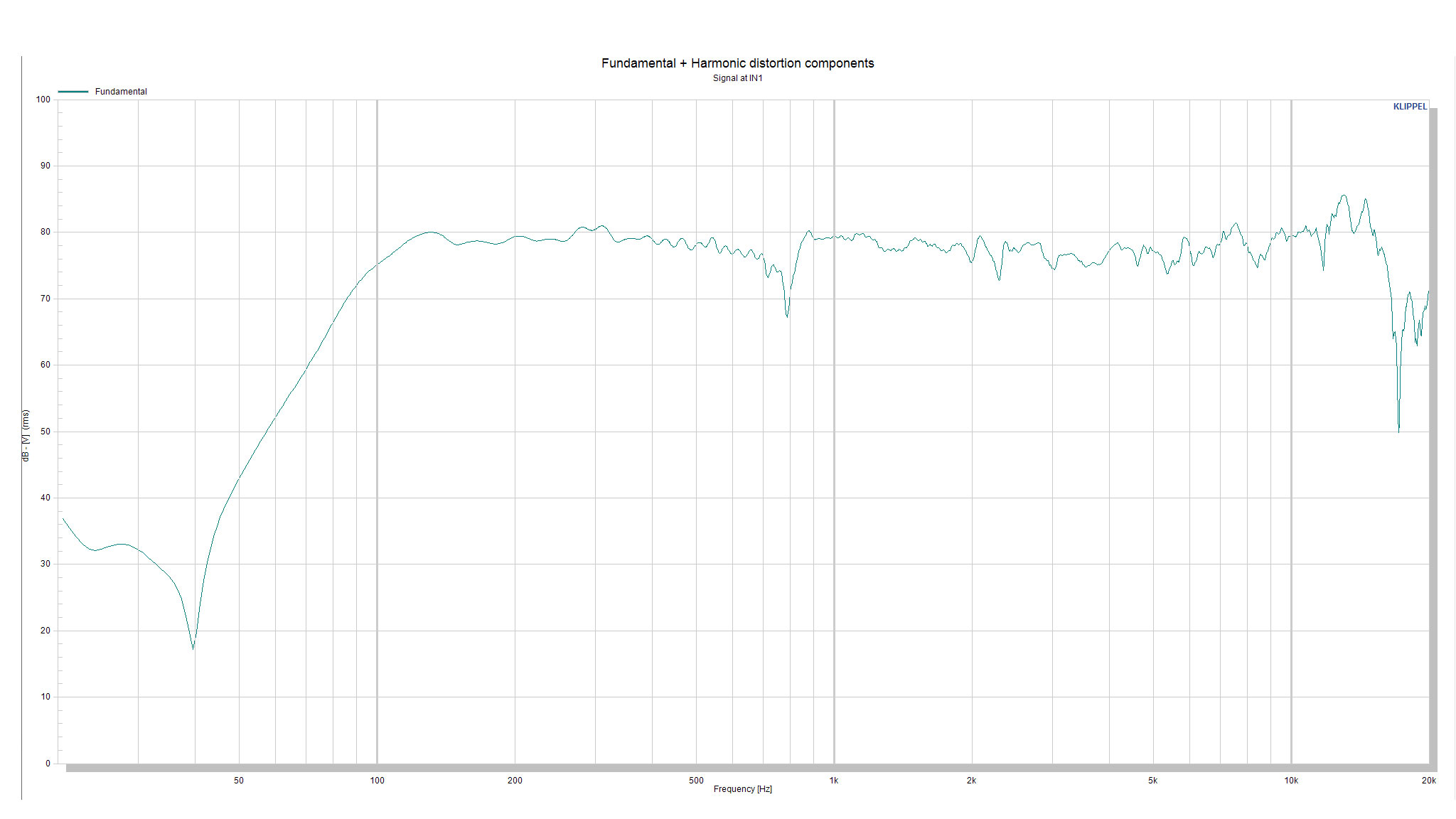

Smooth full range wide bandwidth response curve

tech_pics_h

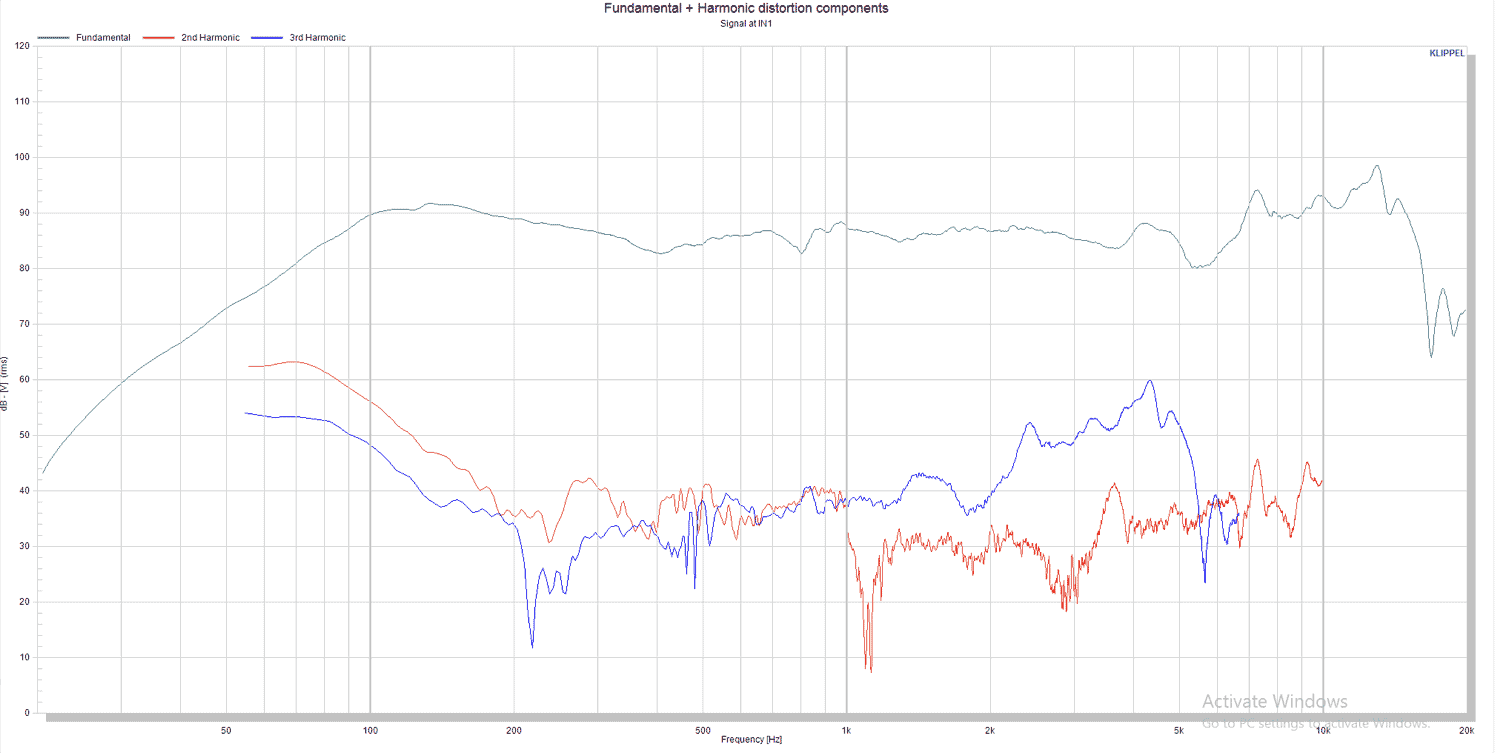

2.5% Ultra low distortion for high fidelity sound reproduction

tech_pics_I

With integrated PEQ we are able to flatten the response for even more precise sound reproduction
